    Product Details:

    Place of Origin: CHINA
    Brand Name: TLANMP
    Certification: ISO9001:2008
    Model Number: YRT580

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 1-1000
    Packaging Details: Industrial Neutral Packing
    Delivery Time: 10 days
    Payment Terms: PAYPAL . T/T , AliPAY, Western Union
    Supply Ability: 1000 pcs/month
    Contact Now
    Detailed Product Description
    Material: GCr15 Bearings Steel Application: Machine Tool Turntable / Rotary Table
    Standard: THK/INA/IKO

    Product Description

    YRT580 Rotary Table Bearings (580x750x90mm) Machine Tool Bearing

    - slewing bearing Made in China

    A . Rotary Table Bearings Parameters
    Brand- TLANMP
    Model number- YRT580
    Inner ring(mm)- 580
    Outer ring(mm)- 750
    Width(mm)- 60
    Weight(Kg)- 89
    Materials- GCR15/GCR15SiMn
    Precision grade- P4
    Lubrication type- Grease lubrication
    Rotating part- Inner ring/Outer ring
    Load direction- Multi-load
    Structure- Integrated Inner/Outer Ring

    B . YRT580 Rotary Table Bearings Specification Sheet
    Model
    Number
    Main dimensions (mm) Fixing Hole
    (Inner ing)
    Fixing Hole
    (Outer ing)
    Retaining
    screws
    Number of
    pitches
    x Angle
    d D H H1 C D1 J J1 d1 d2 a Quantity d3 Quantity
    YRT580 580 750 90 60 30 700 610 720 11.4 18 11 46 11.4 42 2 48×7.5°
    Screw tightening
    torque(Nm)
    Basic load rating
    (Axial)
    Basic load rating
    (radial)
    Limiting
    speed
    (Grease) r/m
    Bearing
    frictional
    torque(Nm)
    Weight
    (Kg)
    Model
    Number
    Ca KN Coa KN Cr KN Cor KN
    68 490 4250 228 965 80 140 89 YRT580
     YRT580 Rotary Table Bearings (580x750x90mm) Machine Tool Bearing TLANMP slewing Axial Radial Bearing

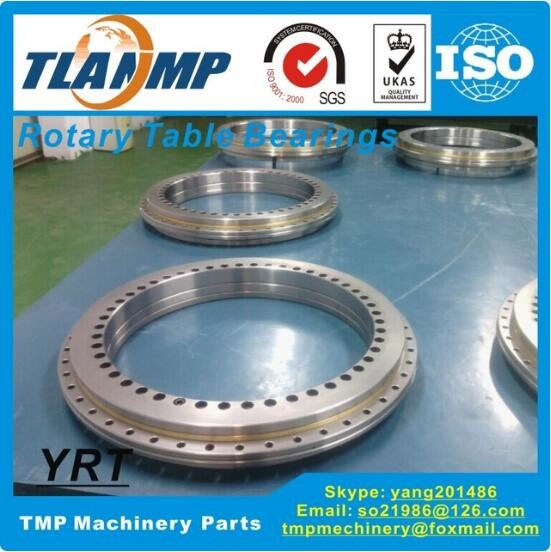

    C . YRT type Rotary Table Bearings Details
    Product Features

    YRT bearings (rotary table bearings) are axial and radial combined cylindrical roller bearings, including

    two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and

    radial p reload, For the convenience of transportation and fixing, two or three symmetrical screws are

    fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing

    accuracy.

    Series Model No.

    YRT50 YRT80 YRT100 YRT120 YRT150 YRT180 YRT200 YRT260 YRT325 YRT395

    YRT460 YRT580 YRT650 YRT850 YRT950 YRT1030 YRT1200

    Applications Product Application
    •Precision machine tools
    •precision Turntable, NC rotary table
    •Rotation part of Machine tools
    •Inspection instrument,Medical equipment
    •Indexing plate of other precision machines etc
