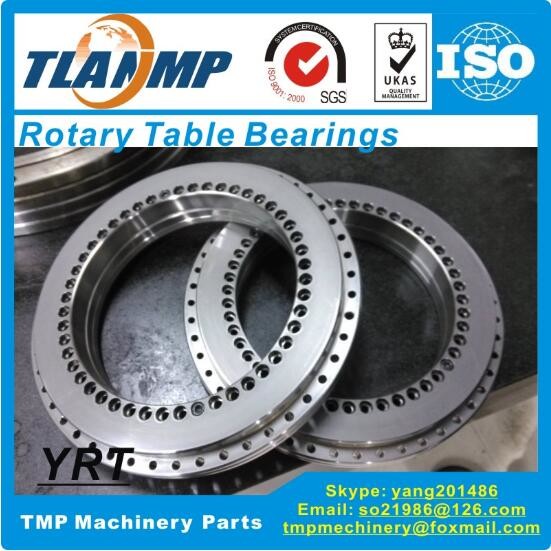

YRT325 Rotary Table Bearings (325x450x60mm) Machine Tool Bearing TLANMP slew ring Turntable Axial Radial Bearing

YRT325 Rotary Table Bearings (325x450x60mm) Machine Tool Bearing TLANMP slew ring Turntable Axial Radial Bearing

    • YRT325 Rotary Table Bearings (325x450x60mm) Machine Tool Bearing TLANMP slew ring Turntable Axial Radial Bearing
    • YRT325 Rotary Table Bearings (325x450x60mm) Machine Tool Bearing TLANMP slew ring Turntable Axial Radial Bearing
  • YRT325 Rotary Table Bearings (325x450x60mm) Machine Tool Bearing TLANMP slew ring Turntable Axial Radial Bearing

    Product Details:

    Place of Origin: CHINA
    Brand Name: TLANMP
    Certification: ISO9001:2008
    Model Number: YRT325

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 1-1000
    Packaging Details: Industrial Neutral Packing
    Delivery Time: 10 days
    Payment Terms: PAYPAL . T/T , AliPAY, Western Union
    Supply Ability: 1000 pcs/month
    Contact Now
    Detailed Product Description
    Material: GCr15 Bearings Steel Application: Machine Tool Turntable / Rotary Table
    Standard: THK/INA/IKO

    Product Description

    YRT325 Rotary Table Bearings (325x450x60mm) Machine Tool Bearing-

    slew ring Turntable bearing

    A . Rotary Table Bearings Parameters
    Brand- TLANMP
    Model number- YRT325
    Inner ring(mm)- 325
    Outer ring(mm)- 450
    Width(mm)- 40
    Weight(Kg)- 25
    Materials- GCR15/GCR15SiMn
    Precision grade- P5/P4/P2
    Lubrication type- Grease lubrication
    Rotating part- Inner ring/Outer ring
    Load direction- Multi-load
    Structure- Integrated Inner/Outer Ring

    B . YRT325 Rotary Table Bearings Specification Sheet
    Model
    Number
    Main dimensions (mm) Fixing Hole
    (Inner ing)
    Fixing Hole
    (Outer ing)
    Retaining
    screws
    Number of
    pitches
    x Angle
    d D H H1 C D1 J J1 d1 d2 a Quantity d3 Quantity
    YRT325 325 450 60 40 20 415 342 430 9.3 15 8.2 34 9.3 33 2 36×10°
    Screw tightening
    torque(Nm)
    Basic load rating
    (Axial)
    Basic load rating
    (radial)
    Limiting
    speed
    (Grease) r/m
    Bearing
    frictional
    torque(Nm)
    Weight
    (Kg)
    Model
    Number
    Ca KN Coa KN Cr KN Cor KN
    34 275 1930 120 345 170 40 25 YRT325
     YRT325 Rotary Table Bearings (325x450x60mm) Machine Tool Bearing TLANMP slew ring Turntable Axial Radial Bearing
    C . YRT type Rotary Table Bearings Details
    Product Features

    YRT bearings (rotary table bearings) are axial and radial combined cylindrical roller bearings, including

    two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and

    radial p reload, For the convenience of transportation and fixing, two or three symmetrical screws are

    fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing

    accuracy.

    Series Model No.

    YRT50 YRT80 YRT100 YRT120 YRT150 YRT180 YRT200 YRT260 YRT325 YRT395

    YRT460 YRT580 YRT650 YRT850 YRT950 YRT1030 YRT1200

    Applications Product Application
    •Precision machine tools
    •precision Turntable, NC rotary table
    •Rotation part of Machine tools
    •Inspection instrument,Medical equipment
    •Indexing plate of other precision machines etc
