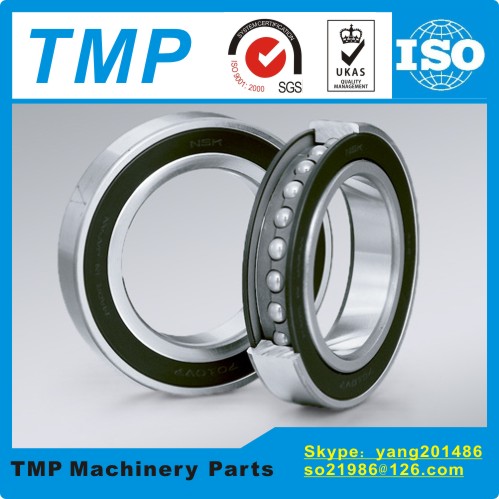

7207 HQ1 AC/C P4 Ceramic Ball Bearings (35x72x17mm) Machine Tool Bearing Open Type High precision Spindle bearings
Product Details:
| Place of Origin: |
China |
| Brand Name: |
TMP |
| Certification: |
ISO9001:2008 |
| Model Number: |
7207C HQ1 |
Payment & Shipping Terms:
| Price: |
1-1000 |
| Packaging Details: |
Industrial Neutral Packing |
| Delivery Time: |
10 days |
| Payment Terms: |
T/T |
| Supply Ability: |
1000 pcs/month |
| Minimum Order Quantity: |
1 |
Contact Now
Detailed Product Description
| Highlight: |
7207 Ceramic Ball Bearing, 35x72x17mm bearing, 7207 bearing |
7207 HQ1 AC/C P4 Ceramic Ball Bearings (35x72x17mm) Machine Tool Bearing Open Type High precision Spindle bearings |
| A . Ceramic Ball Bearings Parameters |
| Brand- | TMP |
| Structure- | Ceramic Ball/Angular Contact ball |
| Model number- | 7207 HQ1 |
| Inner ring(mm)- | 35 |
| Outer ring(mm)- | 72 |
| Width(mm)- | 17 |
| Weight(Kg)- | 0.281 |
| Materials- | Chrome steel/GCR15 |
| Precision grade- | P4/P2 |
| Lubrication type- | Grease lubrication |
| Contact Angle- | C=15°;AC=25° |
| Material(Ball)- | SN24:Ceramic ball(Si3N4) |
| Number of Row- | Single rows |
| Material(Cage)- | TYN-PA;TR-PF |
| Combination- | SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows |
|
| B . 7207 HQ1 Ceramic Ball Bearings Specification Sheet |
| Model Number | Dimensions | α=15° | α=25° | Material
(Cage ) | Weight (kg)
Approx |
| Limiting speed | Limiting speed |
| d | D | B | Basic load
rating | Lubrication | Basic load
rating | Lubrication |
| Cr Cor | Grease Oil | Cr Cor | Grease Oil |
| 7207 HQ1 | 35 | 72 | 17 | 25.8 22.9 | 23800 40600 | 24.5 21.9 | 22400 37800 | PA/PF | 0.281 |
| Categories: | Ceramic Ball Bearings
Angular Contact Ball Bearings |
|---|
| Related Search: | 7207 AC/C HQ1,7207C Ceramic Ball Bearings,7207C Spindle bearing,7207C Angular contact Bearing,35x72x17mm Bearing |
|---|
| C . 72 HQ1 series Ceramic Ball Bearings Details |
Product Features | Angular Contact Ball bearing with Ceramic balls (Si3N4), used in high precision Spindle and Motors |
Series Introduction | High Speed Ceramic Ball Type:ISO 02 Series - highest load, lowest speed bearings-72 Series Angular Contact Bearings |
Series Model No. | 7200HQ1,7201HQ1,7202HQ1,7203HQ1,7204HQ1,7205HQ1,7206HQ1,7207HQ1,7208HQ1,7209HQ1, 7210HQ1,7211HQ1,7212HQ1 |
| Applications | High Speed Ceramic Ball Angular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrialequipment. |
