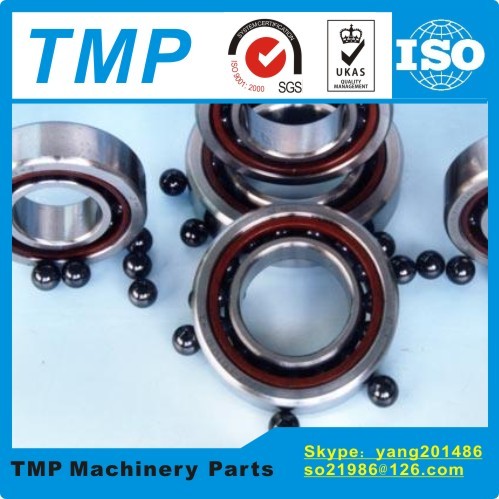

7016 HQ1 AC/C P4 Ceramic Ball Bearings (80x125x22mm) Angular contact bearing Open Type High Speed Spindle bearings

7016 HQ1 AC/C P4 Ceramic Ball Bearings (80x125x22mm) Angular contact bearing Open Type High Speed Spindle bearings

7016 HQ1 AC/C P4 Ceramic Ball Bearings (80x125x22mm)   Angular contact bearing Open Type High Speed  Spindle bearings

Product Details:

Place of Origin: CHINA
Brand Name: TLANMP
Certification: ISO9001:2008
Model Number: 7016C HQ1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1-1000
Packaging Details: Industrial Neutral Packing
Delivery Time: 10 days
Payment Terms: PAYPAL . T/T , WU , AliPAY
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
High Light:

7016 Ceramic Ball Bearing

,

80x125x22mm bearing

,

7016 bearing

7016 HQ1 AC/C P4 Ceramic Ball Bearings (80x125x22mm)

Angular contact bearing Open Type High Speed Spindle bearings

A . Ceramic Ball Bearings Parameters
Brand-TMP
Structure-Ceramic Ball/Angular Contact ball
Model number-7016 HQ1
Inner ring(mm)-80
Outer ring(mm)-125
Width(mm)-22
Weight(Kg)-0.854
Materials-Chrome steel/GCR15
Precision grade-P4/P2
Lubrication type-Grease lubrication
Contact Angle-C=15°;AC=25°
Material(Ball)-SN24:Ceramic ball(Si3N4)
Number of Row-Single rows
Material(Cage)-TYN-PA;TR-PF
Combination-SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows
B . 7016 HQ1 Ceramic Ball Bearings Specification Sheet
Model NumberDimensionsα=15°α=25°Material
(Cage )
Weight (kg)
Approx
Limiting speedLimiting speed
dDBBasic load
rating
LubricationBasic load
rating
Lubrication
Cr CorGrease OilCr CorGrease Oil
7016 HQ1801252234.2 32.714000 2300032.3 31.012000 19000PA/PF0.854

Categories:Angular Contact Ball Bearings
Ceramic Ball Bearings
Related Search:7016 HQ1 AC/C,7016C Ceramic Ball Bearings,7016C Spindle bearing,7016C High Speed Bearing,80x125x22mm Bearing

Product

Features

Angular Contact Ball bearing with Ceramic balls (Si3N4), used in high precision

Spindle and Motors

Series

Introduction

High Speed Ceramic Ball Type:ISO 10 Series - highest load, second lowest speed

bearings-70 Series Angular Contact Bearings

Series

Model No.

7000HQ1,7001HQ1,7002HQ1,7003HQ1,7004HQ1,7005HQ1,7006HQ1,7007HQ1,7008HQ1,7009HQ1,

7010HQ1,7011HQ1,7012HQ1,7013HQ1,7014HQ1,7015HQ1,7016HQ1,7017HQ1,7018HQ1

Applications

High Speed Ceramic Ball Angular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrialequipment.
