Place of Origin: | China |
Brand Name: | TMP |
Certification: | ISO9001:2008 |
Model Number: | 71911C HQ1 |
Price: | 1-1000 |
---|---|
Packaging Details: | Industrial Neutral Packing |
Delivery Time: | 10 days |
Payment Terms: | T/T |
Supply Ability: | 1000 pcs/month |
Minimum Order Quantity: | 1 |
High Light: | 71911C Ceramic Ball Bearing,50x72x12mm bearing,71910C bearing |
---|

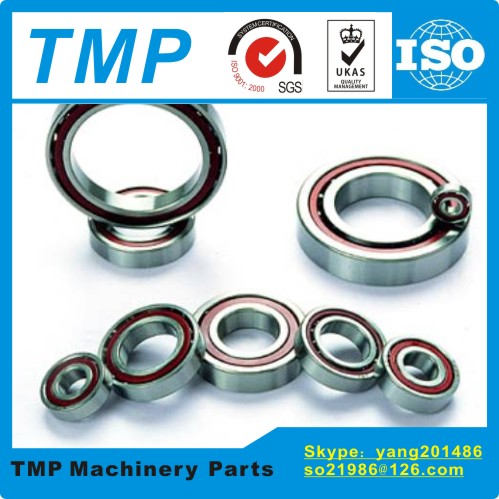

71911C HQ1 P4 Ceramic Ball Bearings (55x80x13mm) Angular contact bearing TMP High precision Spindle bearings | |||||||||
A . Ceramic Ball Bearings Parameters | |||||||||
Brand- | TMP | ||||||||
Structure- | Ceramic Ball/Angular Contact ball | ||||||||
Model number- | 71911C HQ1 | ||||||||
Inner ring(mm)- | 55 | ||||||||
Outer ring(mm)- | 80 | ||||||||
Width(mm)- | 13 | ||||||||
Weight(Kg)- | 0.18 | ||||||||
Materials- | Chrome steel/GCR15 | ||||||||
Precision grade- | P4/P2 | ||||||||
Lubrication type- | Grease lubrication | ||||||||
Contact Angle- | C=15°;AC=25° | ||||||||
Material(Ball)- | SN24:Ceramic ball(Si3N4) | ||||||||
Number of Row- | Single rows | ||||||||
Material(Cage)- | TYN-PA;TR-PF | ||||||||
Combination- | SU:Universal combination (single row) DU:Universal combination (double rows) DB: Back-to-back combination DF: Face-to-face combination DT: Parallel combination DBD.DFD.DTD: Three rows DBB.DFF.DBT.DFT.DTT: Four rows | ||||||||
B . 71911C HQ1 Ceramic Ball Bearings Specification Sheet | |||||||||
Model Number | Dimensions | α=15° | α=25° | Material (Cage ) | Weight (kg) Approx | ||||
Limiting speed | Limiting speed | ||||||||
d | D | B | Basic load rating | Lubrication | Basic load rating | Lubrication | |||
Cr Cor | Grease Oil | Cr Cor | Grease Oil | ||||||
71911C HQ1 | 55 | 80 | 13 | 16.0 12.6 | 21000 35000 | 15.0 11.9 | 18000 31000 | PF | 0.18 |
Categories: | Ceramic Ball Bearings Angular Contact Ball Bearings |
---|---|
Related Search: | 71911C HQ1 P4,71911C Ceramic Ball Bearings,71911C Spindle bearing,71911C Angular contact Bearing,55x80x13mm Bearing |
C . 719 HQ1 series Ceramic Ball Bearings Details | |||||||||
Product Features | Angular Contact Ball bearing with Ceramic balls (Si3N4), used in high precision Spindle and Motors | ||||||||
Series Introduction | High Speed Ceramic Ball Type:ISO 19 Series - second highest speed, with the second lowest load bearings-719 Series Angular Contact Bearings | ||||||||
Series Model No. | 71900C HQ1,71901C HQ1,71902C HQ1,71903C HQ1,71904C HQ1,71905C HQ1,71906C HQ1, 71907C HQ1,71908C HQ1,71909C HQ1,71910C HQ1,71911C HQ1,71912C HQ1,71913C HQ1, 71914C HQ1,71915C HQ1,71916C HQ1,71917C HQ1,71918C HQ1,71919C HQ1,71920C HQ1 | ||||||||
Applications | High Speed Ceramic Ball Angular contact bearing applications : electric motors,Spindle,automotive applications, home appliances, industrial equipment. |
