Name: 760308TN1 P4 Angular Contact Ball Bearing (40x90x23mm) Machine Tool Germany Ball screw support bearing Made in China
Brand: TMP Machinery Parts Co.,Ltd.
SKU: 760308TN1
Price: 500.00 USD
Availability: InStock

Home Products Ball Scew Bearings-7602/7603/BS

760308TN1 P4 Angular Contact Ball Bearing (40x90x23mm) Machine Tool Germany Ball screw support bearing Made in China

Product Details:

Place of Origin:	China
Brand Name:	TMP
Certification:	ISO9001:2008
Model Number:	760308TN1

Payment & Shipping Terms:

Price:	1-1000
Packaging Details:	Industrial Neutral Packing
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	1000 pcs/month
Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Highlight:

Ball Screw Bearing

40x90x23mm bearing

760308TN1 bearing

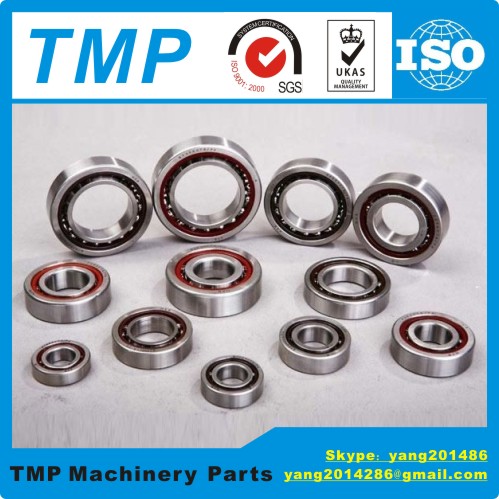

760308TN1 P4 Angular Contact Ball Bearing (40x90x23mm) Machine Tool Bearing Germany Ball screw support bearing Made in China
A . Angular Contact Ball Bearing Parameters
Brand-	TMP
Structure-	Angular Contact ball
Model number-	760308TN1 Ball screw bearing
Inner ring(mm)-	40
Outer ring(mm)-	90
Width(mm)-	23
Weight(Kg)-	0.76
Materials-	Chrome steel/GCR15
Precision grade-	P4
Lubrication type-	Grease lubrication
Contact Angle-	60°
Material(Ball)-	Steel ball(SUJ2)
Number of Row-	Single rows
Material(Cage)-	PA
Application-	ball screws,machine tool
Quality-	High speed, Low noise and Long life

B . 760308 Angular Contact Ball Bearing Specification Sheet
Designation	Principal Dimensions (mm)			Load ratings (KN)		Limiting speed	Preloads (N)			weight (Kg) ≈
	d	D	B	Cr Dynamic	Cor Static	(r/min) Grease	light	medial	heavy
760308	40	90	23	50	83	6300	2800	5600	11200	0.76

Categories:	Angular Contact Ball Bearings Other Bearings Other Precision Bearings
Related Search:	760308TN1 P4,760308TN1 Angular Contact Ball Bearing,760308TN1 Ball Screw Bearing,760308TN1 Bearing,40x90x23mm Bearing

C . 7603 series Angular Contact Ball Bearing Details

Series

Introduction

7603 Axial angular contact ball bearings are available as single, double or triple row

ready-to-fit units. They areself-retaining and comprise thick-walled,

geometrically stable outer rings, ball and cage assemblies and one-piece

or two-piece inner rings. In several series, the outer ring has through holes for

simple flange mounting to theadjacent construction.

Series

Model No.

760304TN1,760305TN1,760306TN1,760307TN1,760308TN1,760309TN1,760310TN1,

760311TN1,760312TN1,760313TN1,760314TN1,760315TN1,760316TN1,760317TN1,

760318TN1,760319TN1,760320TN1,760322TN1,760324TN1,760326TN1

Applications

The bearing rings are matched to each other such that a defined preload is achieved

when the rings are clamped in place using a precision locknut.
