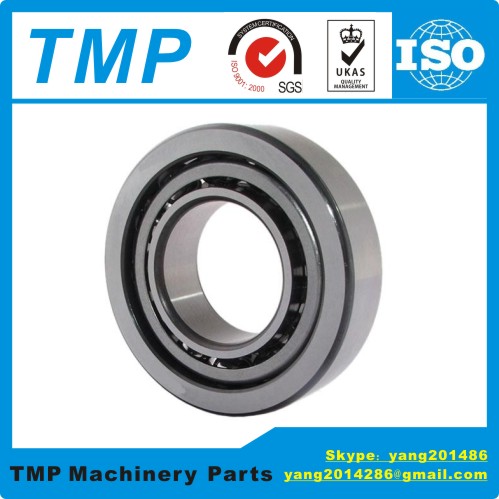

BS2047TN1 P4 Angular Contact Ball Bearing (20x47x15mm) Machine Tool Bearing TMP Band High rigidity Ball Screw Bearing

BS2047TN1 P4 Angular Contact Ball Bearing (20x47x15mm) Machine Tool Bearing TMP Band High rigidity Ball Screw Bearing

BS2047TN1 P4 Angular Contact Ball Bearing (20x47x15mm) Machine Tool Bearing TMP Band High rigidity  Ball Screw Bearing

Product Details:

Place of Origin: China
Brand Name: TMP
Certification: ISO9001:2008
Model Number: BS2047TN1

Payment & Shipping Terms:

Price: 1-1000
Packaging Details: Industrial Neutral Packing
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 1000 pcs/month
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
High Light:

Ball Screw Bearing

,

20x47x15mm bearing

,

BS2047TN1 bearing

BS2047TN1 P4 Angular Contact Ball Bearing (20x47x15mm)

Machine Tool Bearing TMP Band High rigidity Ball Screw Bearing

A . Angular Contact Ball Bearing Parameters
Brand-TMP
Structure-Angular Contact ball
Model number-BS2047TN1 Ball screw bearing
Inner ring(mm)-20
Outer ring(mm)-47
Width(mm)-15
Weight(Kg)--
Materials-Chrome steel/GCR15
Precision grade-P4
Lubrication type-Grease lubrication
Contact Angle-60°
Material(Ball)-Steel ball(SUJ2)
Number of Row-Single rows
Material(Cage)-PA
Application-ball screws,machine tool
Quality-High speed, Low noise and Long life
B . BS2047 Angular Contact Ball Bearing Specification Sheet
Model NumberDimensionsLimiting speedMaterial
(Cage )
Weight (kg)
Approx
dDBBasic load ratingLubrication
Cr CorGrease Oil
BS204720471519.3 2511000PA-

Categories:Other Precision Bearings
Other Bearings
Angular Contact Ball Bearings
Related Search:BS2047TN1 P4,BS2047TN1 Ball Screw Bearing,BS2047TN1 Ball Bearing,BS2047TN1 Bearing,20x47x15mm Bearing
C . BS series Angular Contact Ball Bearing Details

Series

Introduction

Screw drive bearing-BS series:BS series(Non-ISO metric).Ball screw bearing is single

direction angular contact ball bearing with 60 degree.The bearing can bear axial load

in single direction and certain radical load. the bearings is mainly installed on

ball screw of machine tool feed systems,two to four row arrangements are used in

common ways.The back-to-back duplex arrangement is commonly used because it allows

acquisition of the specified preload by tightening the inner ring. The

face-to-face duplex arrangement may be used if more precise alignment

is required.Or universal ground set combination bearings are also available(Suffix G)

.,this permits the use of random combinations where two or more bearings are mounted.

ball screw support bearings are generally lubricated with grease especially the

double seals one packed with grease before sending.

Series

Model No.

BS1547TN1 BS1747TN1 BS2047TN1 BS2562TN1 BS3062TN1 BS3072TN1 BS3572TN1 BS4072TN1

BS4090TN1 BS4575TN1 BS45100TN1 BS50100TN1 BS5590TN1 BS55100TN1 BS55120TN1

BS60120TN1 BS75110TN1 BS100150TN

Applications

Angular contact ball bearings for screw drives have high accuracy, high load carrying capacity, high rigidity,

low friction, are easy to fit and maintenance-free or low-maintenance advantages.
