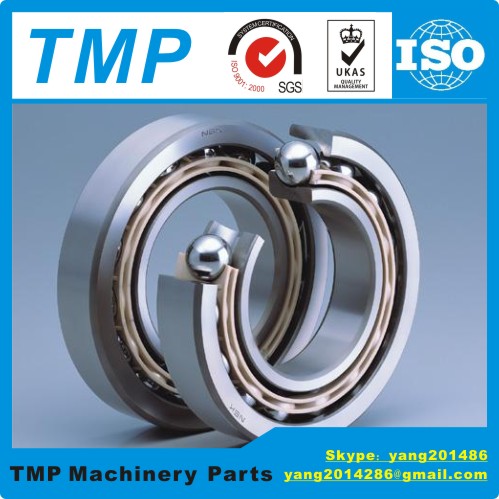

71930C DBL P4 Angular Contact Ball Bearing (150x210x28mm) Open Type High Speed Electric Motor Bearing

71930C DBL P4 Angular Contact Ball Bearing (150x210x28mm) Open Type High Speed Electric Motor Bearing

71930C DBL P4 Angular Contact Ball Bearing (150x210x28mm)    Open Type High Speed  Electric Motor Bearing

Product Details:

Place of Origin: China
Brand Name: TMP
Certification: ISO9001:2008
Model Number: 71930C

Payment & Shipping Terms:

Price: 1-1000
Packaging Details: Industrial Neutral Packing
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 1000 pcs/month
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
High Light:

71930C ball Bearing

,

150x210x28mm bearing

,

71930C bearing

71930C DBL P4 Angular Contact Ball Bearing (150x210x28mm)

Open Type High Speed Electric Motor Bearing

A . Angular Contact Ball Bearing Parameters
Brand-TMP
Structure-Angular Contact ball
Model number-71930C AC/C
Inner ring(mm)-150
Outer ring(mm)-210
Width(mm)-28
Weight(Kg)-2.48
Materials-Chrome steel/GCR15
Precision grade-P4/P2
Lubrication type-Grease lubrication
Contact Angle-C=15°;AC=25°
Material(Ball)-Steel ball(SUJ2); SN24:Ceramic ball(Si3N4)
Number of Row-Single rows
Material(Cage)-TYN-PA;TR-PF
Combination of mark-SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows
Preloaded mark-EL: Micro preloaded
L : Light preload
M : Medium preloade
H : Heavy preloaded
B . 71930C Angular Contact Ball Bearing Specification Sheet
Model NumberDimensionsα=15°α=25°Material
(Cage )
Weight (kg)
Approx
Limiting speedLimiting speed
dDBBasic load
rating
LubricationBasic load
rating
Lubrication
Cr CorGrease OilCr CorGrease Oil
71930C15021028118.2 175.14600 7500111.4 165.84000 6500PF2.48

Categories:Angular Contact Ball Bearings
Ceramic Ball Bearings
Related Search:71930C DB P4,71930C Angular Contact Ball Bearing,71930C Spindle Bearing,71930C Motor Bearing,150x210x28mm Bearing
C . 719 series Angular Contact Ball Bearing Details

Product

Features

Precision Angular Contact Ball BearingsDue to their internal design, angular contact

ball bearings can withstand high radial-axial loads and reach high speeds.

They are asymmetrical for manufacturing reasons and can withstand unidirectional

axial loads only. Angular bearings are usually mounted in a group of two or more

opposed preloaded units with rigid or elastic spacers. Typically, the inner and

outer raceways and balls are made of chrome steel. Where operating conditions are

severe, bearings may have ceramic balls creating a hybrid bearing.

Series

Introduction

ISO 19 Series - second highest speed, with the second lowest load bearings-719 Series Angular Contact Bearings

Series

Model No.

71900C 71901C 71902C 71903C 71904C 71905C 71906C 71907C 71908C 71909C 71910C 71911C

71912C 71913C 71914C 71915C 71916C 71917C 71918C 71919C 71920C 71921C 71922C 71924C

71926C 71928C 71930C 71932C 71934C 71936C 71938C 71940C 71944C 71948C 71952C

71956C 71960C 71964C 71968C 71972C 71976C 71980C 71984C 71988C 71992C

ApplicationsAngular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrial equipment.
