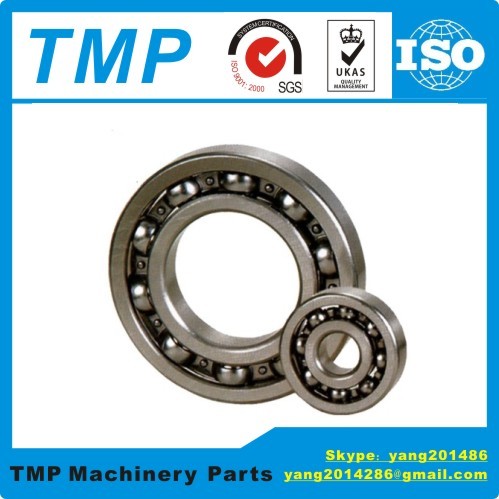

7224C/AC DBL P4 Angular Contact Ball Bearing (120x215x40mm)Machine Tool Bearing Open Type High quality Spindle bearings

7224C/AC DBL P4 Angular Contact Ball Bearing (120x215x40mm)Machine Tool Bearing Open Type High quality Spindle bearings

7224C/AC DBL P4 Angular Contact Ball Bearing (120x215x40mm)Machine Tool Bearing Open Type High quality Spindle bearings

Product Details:

Place of Origin: CHINA
Brand Name: TLANMP
Certification: ISO9001:2008
Model Number: 7224C

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1-1000
Packaging Details: Industrial Neutral Packing
Delivery Time: 10 days
Payment Terms: PAYPAL . T/T , WU , AliPAY
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
High Light:

7224C ball Bearing

,

120x215x40mm bearing

,

7224C bearing

7224C/AC DBL P4 Angular Contact Ball Bearing (120x215x40mm)

Machine Tool Bearing Open Type High quality Spindle bearings

A . Angular Contact Ball Bearing Parameters
Brand-TMP
Structure-Angular Contact ball
Model number-7224
Inner ring(mm)-120
Outer ring(mm)-215
Width(mm)-40
Weight(Kg)-5.16
Materials-Chrome steel/GCR15
Precision grade-P4
Lubrication type-Grease lubrication
Contact Angle-C=15°;AC=25°
Material(Ball)-Steel ball(SUJ2); SN24:Ceramic ball(Si3N4)
Number of Row-Single rows
Material(Cage)-TYN-PA;TR-PF
Combination of mark-SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows
Preloaded mark-EL: Micro preloaded
L : Light preload
M : Medium preloade
H : Heavy preloaded
B . 7224 Angular Contact Ball Bearing Specification Sheet
Model NumberDimensionsα=15°α=25°Material
(Cage )
Weight (kg)
Approx
Limiting speedLimiting speed
dDBBasic load
rating
LubricationBasic load
rating
Lubrication
Cr CorGrease OilCr CorGrease Oil
722412021540175.4 218.45000 8000166.3 207.94300 7000PA/PF5.16

Categories:Angular Contact Ball Bearings
Ceramic Ball Bearings
Related Search:7224C DB P4,7224AC DB P4,7224C Angular Contact Ball Bearing,7224C Spindle bearing,120x215x40mm bearing
C . 72 series Angular Contact Ball Bearing Details

Product

Features

Precision Angular Contact Ball BearingsDue to their internal design, angular contact ball bearings can

withstand high radial-axial loads and reach high speeds. They are asymmetrical for

manufacturing reasons and can withstand unidirectional axial loads only. Angular bearings are usually

mounted in a group of two or more opposed preloaded units with rigid or elastic spacers. Typically,

the inner and outer raceways and balls are made of chrome steel. Where operating conditions are severe,

bearings may have ceramic balls creating a hybrid bearing.

Series

Introduction

ISO 02 Series - highest load, lowest speed bearings-72 Series Angular Contact Bearings

Series

Model No.

7200AC/C 7201AC/C 7202AC/C 7203AC/C 7204AC/C 7205AC/C 7206AC/C 7207AC/C 7208AC/C

7209AC/C 7210AC/C 7211AC/C 7212AC/C 7213AC/C 7214AC/C 7215AC/C 7216AC/C 7217AC/C

7218AC/C 7219AC/C 7220AC/C 7221AC/C 7222AC/C 7224AC/C 7226AC/C 7228AC/C 7230AC/C

7232AC/C 7234AC/C 7236AC/C 7238AC/C 7240AC/C 7244AC/C

ApplicationsAngular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrial equipment.
