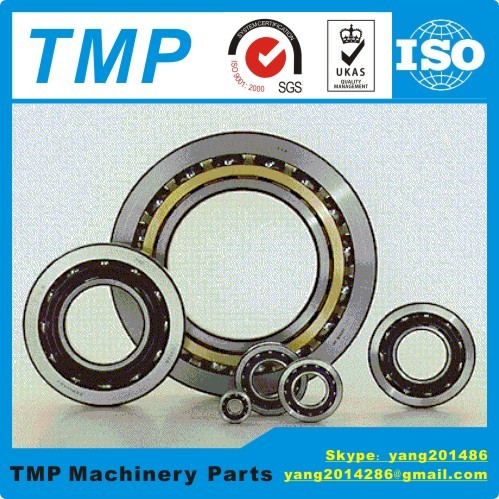

7217C/AC DBL P4 Angular Contact Ball Bearing (85x150x28mm) Machine Tool Open Type High Speed Electric Motor Bearing

7217C/AC DBL P4 Angular Contact Ball Bearing (85x150x28mm) Machine Tool Open Type High Speed Electric Motor Bearing

7217C/AC DBL P4 Angular Contact Ball Bearing (85x150x28mm) Machine Tool Open Type High Speed  Electric Motor Bearing

Product Details:

Place of Origin: CHINA
Brand Name: TLANMP
Certification: ISO9001:2008
Model Number: 7217C

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1-1000
Packaging Details: Industrial Neutral Packing
Delivery Time: 10 days
Payment Terms: PAYPAL . T/T , WU , AliPAY
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
High Light:

7217C ball Bearing

,

85x150x28mm bearing

,

7217C bearing

7217C/AC DBL P4 Angular Contact Ball Bearing (85x150x28mm)

Machine Tool Bearing Open Type High Speed Electric Motor Bearing

A . Angular Contact Ball Bearing Parameters
Brand-TMP
Structure-Angular Contact ball
Model number-7217
Inner ring(mm)-85
Outer ring(mm)-150
Width(mm)-28
Weight(Kg)-1.73
Materials-Chrome steel/GCR15
Precision grade-P4
Lubrication type-Grease lubrication
Contact Angle-C=15°;AC=25°
Material(Ball)-Steel ball(SUJ2); SN24:Ceramic ball(Si3N4)
Number of Row-Single rows
Material(Cage)-TYN-PA;TR-PF
Combination of mark-SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows
Preloaded mark-EL: Micro preloaded
L : Light preload
M : Medium preloade
H : Heavy preloaded
B . 7217 Angular Contact Ball Bearing Specification Sheet
Model NumberDimensionsα=15°α=25°Material
(Cage )
Weight (kg)
Approx
Limiting speedLimiting speed
dDBBasic load
rating
LubricationBasic load
rating
Lubrication
Cr CorGrease OilCr CorGrease Oil
7217851502897.4 107.57500 1300092.5 102.46500 11000PA/PF1.73

Categories:Angular Contact Ball Bearings
Ceramic Ball Bearings
Related Search:7217C DB P4,7217AC DB P4,7217C Angular Contact Ball Bearing,7217C Spindle bearing,85x150x28mm bearing
C . 72 series Angular Contact Ball Bearing Details

Product

Features

Precision Angular Contact Ball BearingsDue to their internal design, angular contact ball bearings can

withstand high radial-axial loads and reach high speeds. They are asymmetrical for

manufacturing reasons and can withstand unidirectional axial loads only. Angular bearings are usually

mounted in a group of two or more opposed preloaded units with rigid or elastic spacers. Typically,

the inner and outer raceways and balls are made of chrome steel. Where operating conditions are severe,

bearings may have ceramic balls creating a hybrid bearing.

Series

Introduction

ISO 02 Series - highest load, lowest speed bearings-72 Series Angular Contact Bearings

Series

Model No.

7200AC/C 7201AC/C 7202AC/C 7203AC/C 7204AC/C 7205AC/C 7206AC/C 7207AC/C 7208AC/C

7209AC/C 7210AC/C 7211AC/C 7212AC/C 7213AC/C 7214AC/C 7215AC/C 7216AC/C 7217AC/C

7218AC/C 7219AC/C 7220AC/C 7221AC/C 7222AC/C 7224AC/C 7226AC/C 7228AC/C 7230AC/C

7232AC/C 7234AC/C 7236AC/C 7238AC/C 7240AC/C 7244AC/C

ApplicationsAngular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrial equipment.
