SX011814 Crossed Roller Bearings (70x90x10mm) TLANMP High precision Robotic Bearings

SX011814 Crossed Roller Bearings (70x90x10mm) TLANMP High precision Robotic Bearings

    • SX011814 Crossed Roller Bearings (70x90x10mm) TLANMP High precision Robotic Bearings
    • SX011814 Crossed Roller Bearings (70x90x10mm) TLANMP High precision Robotic Bearings
  • SX011814 Crossed Roller Bearings (70x90x10mm) TLANMP High precision Robotic Bearings

    Product Details:

    Place of Origin: CHINA
    Brand Name: TLANMP
    Certification: ISO9001:2008
    Model Number: SX011814

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 1-1000
    Packaging Details: Industrial Neutral Packing
    Delivery Time: 10 days
    Payment Terms: PAYPAL . T/T , AliPAY, Western Union
    Supply Ability: 1000 pcs/month
    Contact Now
    Detailed Product Description
    Material: GCr15 Bearings Steel Application: Robotic Arms, Machine Tool Turntable
    Standard: INA

    Product Description

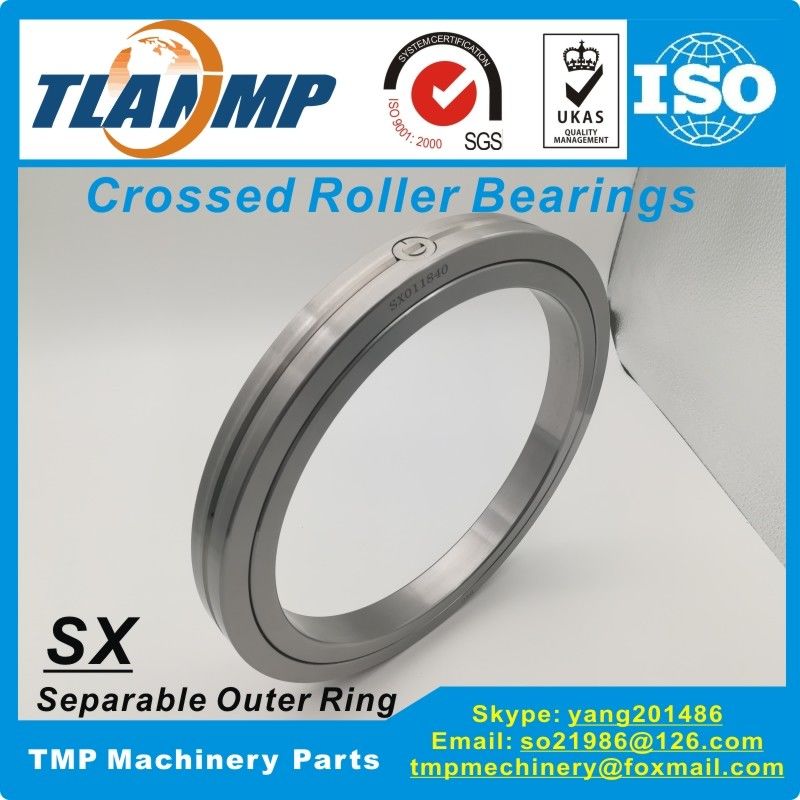

    SX011814 Crossed Roller Bearings (70x90x10mm) Thin section bearing
    High precision Robotic Bearings

    A . Crossed Roller Bearings Parameters
    Brand-TLANMP
    Model number-SX011814
    Inner ring(mm)-70
    Outer ring(mm)-90
    Width(mm)-10
    Weight(Kg)-0.3
    Materials-GCR15/GCR15SiMn
    Precision grade-P5/P4/P2
    Lubrication type-Grease lubrication
    Rotating part-Inner Ring Rotation
    Load direction-Multi-load
    Structure-Outer ring split

    B . SX011814 Crossed Roller Bearings Specification Sheet
    Model
    Number
    Main dimensionsMounting
    dimensions
    Basic load rating
    (radial)
    weight
    Inner
    ring
    d (mm)
    Outer
    ring
    D(mm)
    Roller
    pitch
    circle
    dp(mm)
    Width
    (mm)
    Greasing
    hole φ
    Chamfer
    r(min)
    dsDhC kNC0 kNKg
    SX011814709080101.20.679.580.511200.3

    SX Cross Roller Bearings

    C . SX type Crossed Roller Bearings Details
    Product Features

    TMP Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer
    rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove
    through the separate spacers in the deep groove rolling surface. This special design allows just one
    bearing to carry loads in all directions including radial, axial and moment loads.

    Series Introduction

    SX standard type is a bearing similar to a RB standard type. The two separable outer rings are
    connected by locking ring

    Series Model No.

    SX011814,SX011818,SX011820,SX011824,SX011828,SX011832,SX011836,SX011840,SX011848,
    SX011860,SX011868,SX011860,SX0118/500

    ApplicationsProduct Application
    •Industrial Robotic arm,Reducer drive
    •precision Turntable,NC rotary table
    •Rotation part of Machine tools
    •Inspection instrument,Medical equipment
    • Aviation equipment,Military radar etc
