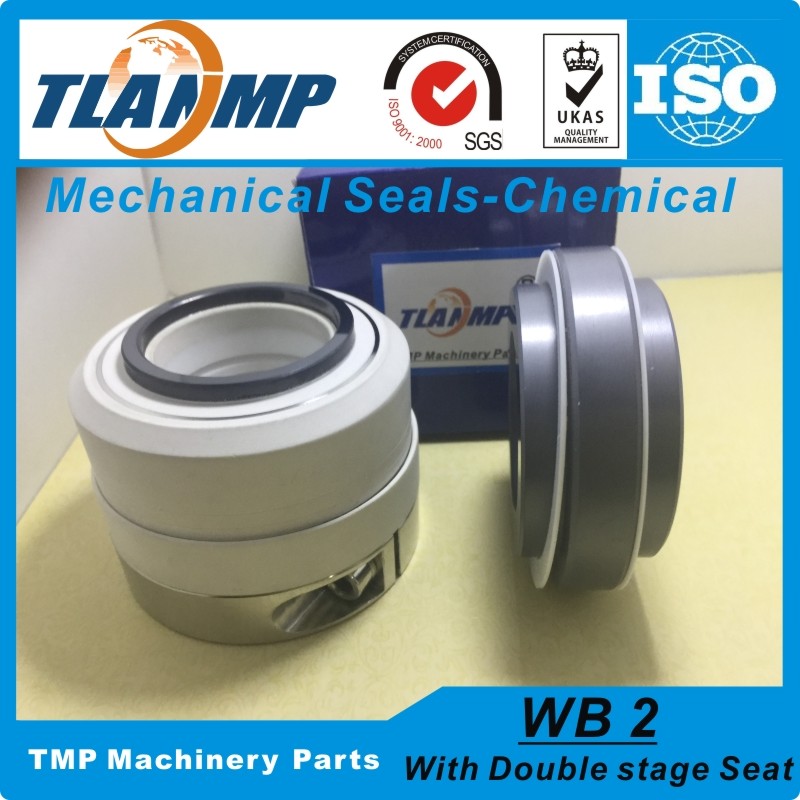

WB2-35 WB2/35 PTFE bellows Burgmann mechanical seals For Chemical Pumps with Double Stage seat

WB2-35 WB2/35 PTFE bellows Burgmann mechanical seals For Chemical Pumps with Double Stage seat

    • WB2-35 WB2/35 PTFE bellows Burgmann mechanical seals For Chemical Pumps with Double Stage seat
    • WB2-35 WB2/35 PTFE bellows Burgmann mechanical seals For Chemical Pumps with Double Stage seat
    • WB2-35 WB2/35 PTFE bellows Burgmann mechanical seals For Chemical Pumps with Double Stage seat
    • WB2-35 WB2/35 PTFE bellows Burgmann mechanical seals For Chemical Pumps with Double Stage seat
    • WB2-35 WB2/35 PTFE bellows Burgmann mechanical seals For Chemical Pumps with Double Stage seat
  • WB2-35 WB2/35 PTFE bellows Burgmann mechanical seals For Chemical Pumps with Double Stage seat

    Product Details:

    Place of Origin: CHINA
    Brand Name: TLANMP
    Certification: ISO9001:2008
    Model Number: WB2-35

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 1-1000
    Packaging Details: Industrial Neutral Packing
    Delivery Time: 10 days
    Payment Terms: PAYPAL . T/T , WU , AliPAY
    Supply Ability: 1000 pcs/month
    Contact Now
    Detailed Product Description
    Material: SiC/SiC/PTFE Application: Chemical Pumps
    Standard: Burgmann


    WB2 Pump Seals


    WB2-35mm PTFE bellows mechanical seals For Corrosion resistant Chemical Pumps with perfluoroethylene Cover


    Series Mechanical Seals WB2

    Model
    Number

    WB2-35mm

    Shaft
    Size

    35mm
    Introduction

    WB2 series adppts perfluoroethylene bellows.It is designed with multi-spring structure.The spring of WB2 type is protected threugh a perfluoroethylene cover.This mechanical seal is one of the most commonly used seals for corrosion resistant pumps.

    Single seal
    Balanced
    Independent of direction of rotation
    Tetrafluoroethylene bellows


    Application



    Operating Limit:
    Pressure:≤0.5Mpa
    Temperature:-10~100 ces
    Linear Speed:≤15m/s
    Axial movement:±0.5mm
    Materials



    Sealing face: Silicon carbide,Tungsten carbide,Aluminun oxide,PTFE
    Secondary sealing: PTFE
    Metal component:304 or 316L stainless steel

    WB2 Chemical Mechanical Seals
