Place of Origin: | China |
Brand Name: | TLANMP |
Certification: | ISO9001:2008 |
Model Number: | 112-18 |
Minimum Order Quantity: | 1 |
---|---|
Price: | 1-1000 |
Packaging Details: | Industrial Neutral Packing |
Delivery Time: | 10 days |
Payment Terms: | T/T |
Supply Ability: | 1000 pcs/month |
Standard Or Nonstandard: | Standard | Style: | Mechanical Seal |
---|---|---|---|
Material: | Metal |

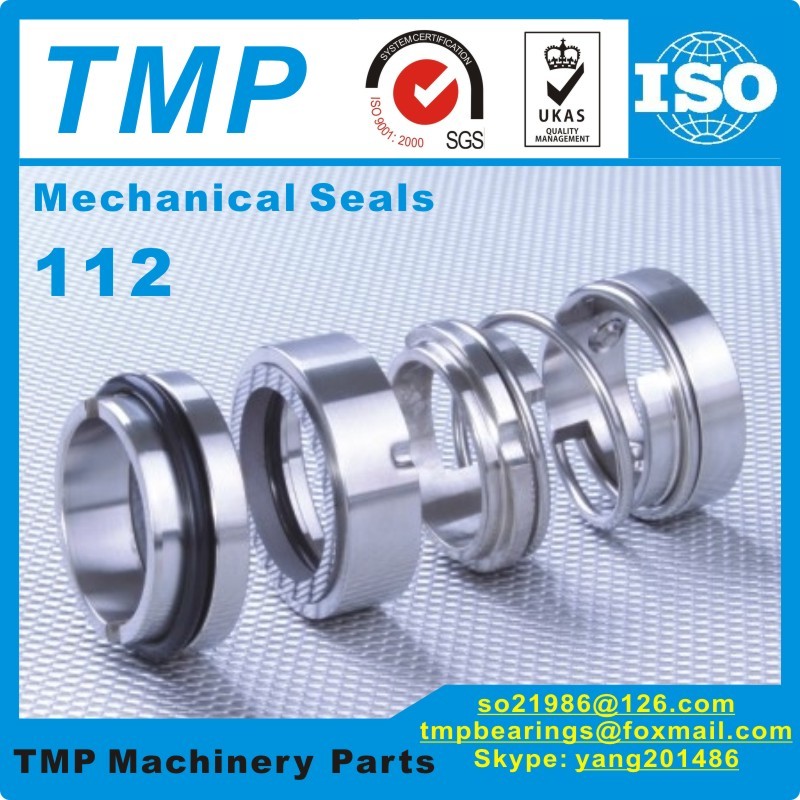

112-18mm Unbalanced Mechanical Seals For Shaft Size 18mm Pumps used in oil and sewage With G9 Seat (Material:TC/TC)
|
|
Series | Mechanical Seals 112 |
Model Number |
112-18mm |
Shaft Size |
18mm |
Introduction |
112 Mechanical seal adopts crotch mechanism to achieve rellable drive.The secondary seal can use "O"ring "V"ring.It is often used for oil,waste water,chemicals and other weak corrosive medium. Single seal Unbalanced
Independent of direction of rotation
|
Application |
Operating Limit:
Specification:20~80mm
Pressure:0~1.2Mpa
Temperature:-20 °C~+180 °C
Linear Speed:≤15m/s
Axial movement:±1.0mm
|
Materials |
Sealing face:Graphite,Slicon carbide,Tungsten carbide
Secondary sealing:Acrylonitrile rubber,Fluorine rubber,Ethylene propylene rubber,Silicon rubber,PTFE
Metal component:304 or 316L stainless steel
|
TMP Machinery Parts Co.,Ltd is a professional manufacturer of high precision machinery parts,The main products are Grundfos/Burgmann/Flygt/John Crane Seals,Mechanical shaft seal,Mechanical seal,Cartridge seal,Metal Bellow seal ,Thin Section Bearings, Crossed roller bearings, Rotary Table Bearings, Tapered Roller Bearings, Angular Contact Ball Bearings, Slewing Bearings, One Way Clutches,One Way Bearings,Drawn Cup Roller Clutches,Overrunning clutches,Indexing clutches,Backstop clutches, etc,Our products are used for Robotics, CNC Machine Tools, You can find all you need in our store, all the bearings and parts here is made in China and can replace with imported parts .
