|Place of Origin:||China|
|Packaging Details:||Industrial Neutral Packing|
|Delivery Time:||10 days|
|Supply Ability:||1000 pcs/month|
|Minimum Order Quantity:||1|
One Way Clutch,
One Way Bearing

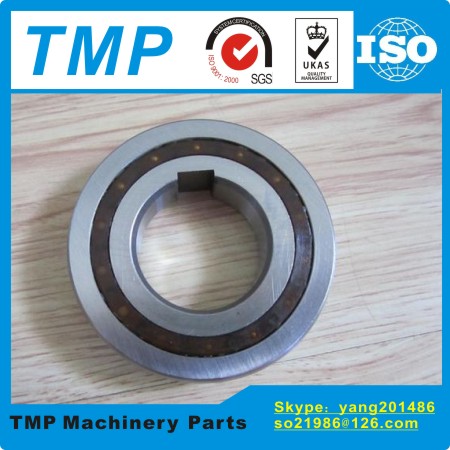

|CSK12 One Way Clutches Sprag Type (12x32x10mm) One Way Bearings Freewheel Type Backstop Clutch|
|A . One Way Clutches Sprag Type Parameters|
|Structure-||Type CSK is a sprag type freewheel integrated into a 62 series ball bearing (except sizes 8 and 40).|
|B . CSK12 One Way Clutches Sprag Type Specification Sheet|
|Size(mm)||Corresponding bearing||Drag torque||Speeds||Bearing Load|
|C . CSK Series One Way Clutches Sprag Type Details|
One Way Clutches Sprag Type mainly used as Backstop clutches(Most suitable as
backstops, and mostly the contact-free versions);
continuously during operation. The freewheel prevents reverse rotation if the drive is disconnected.
Type CSK is a sprag type freewheel integrated into a 62 series ball bearing
(except sizes 8 and 40). It is bearing supported, delivered grease lubricated and
protected against dust of more than 0,3 mm. The use of additional "nylos" type seals is
recommended especially when the working temperature exceeds 50°C. Oil bath lubrication
is also possible.
several times the overrunning life time. Torque transmission is ensured by a press fit
assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance.
The initial bearing radial clearance is set at C5, and is reduced if using the press fit as specified.
CSK40(BB40/CSK40P/CSK40PP) CSK8-2RS CSK12-2RS CSK15-2RS/BB15-2GD
CSK17-2RS/BB17-2GD CSK20-2RS/BB20-2GD CSK25-2RS/BB25-2GD
CSK30-2RS/BB30-2GD CSK35-2RS/BB35-2GD CSK40-2RS/BB40-2GD
|Applications||Reducers , Flender Gearbox ,SEW Gearbox;|
Overrunning clutch:for multiple-machine drives or to separate the inertia of masses of a driven machine from the driving
machine after it has been switched off.
Indexing clutch:which turns a shaft step by step, thus achieving indexed material feed or a variable speed.
Backstop clutch:to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake.
