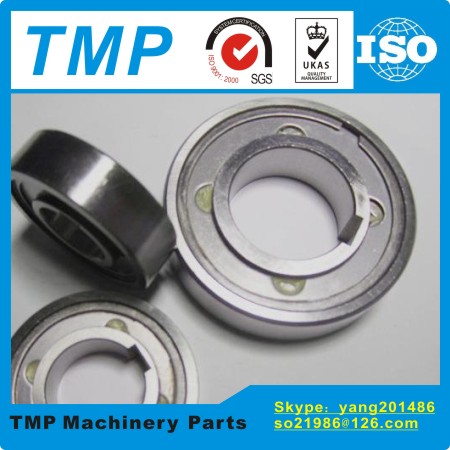

AS30 One Way Clutches Roller Type (30x62x16mm) One Way Bearings Stieber Freewheel Clutch Gear reducer bearing

Product

Features

One Way Clutches Roller Type mainly used as Overrunning and Indexing clutches,
Overrunning clutches:The freewheel disengages automatically when the driven member

rotates faster than the driving member.
Indexing clutch:The freewheel allows the conversion of reciprocating motion into a

discontinuous rotational movement.

Series

Introduction

Type AS is a roller type freewheel non-bearingsupported. Bearings are required to support

axial and radial loads. Lubrication and sealing must also be provided by the installation.

Nominal outside dimensions are the same as series 62.. ball bearings.
A typical arrangement is to install this type alongside a series 62 bearing within the same

location tolerances,as shown on the following page.The inner race is keyed to the shaft

(except 6 mm bore).The outer race has a positive r6 tolerance to give a press fitin a H7

housing. The outer housing must be strong enoughto not expand after assembly.

This design can accept an axial misalignment of inner and outer race of ± S/2.

Series

Model No.

AS6 AS8 AS10 AS12 AS15 AS20 AS25 AS30 AS35 AS40 AS45 AS50 AS55 AS60 AS80
NSS6 NSS8 NSS10 NSS12 NSS15 NSS20 NSS25 NSS30 NSS35 NSS40 NSS45 NSS50

NSS55 NSS60 NSS80

Reducers , Flender Gearbox ,SEW Gearbox;
Overrunning clutch:for multiple-machine drives or to separate the inertia of masses of a

driven machine from the driving machine after it has been switched off.
Indexing clutch:which turns a shaft step by step, thus achieving indexed material feed

or a variable speed.
Backstop clutch:to prevent a machine shaft turning backwards. In this case the overrunning

clutch acts as a brake.
