|Place of Origin:||China|
|Packaging Details:||Industrial Neutral Packing|
|Delivery Time:||10 days|
|Supply Ability:||1000 pcs/month|
|Minimum Order Quantity:||1|
One Way Clutch,
One Way Bearing
|GFR80 One Way Clutches Roller Type (80x210x144mm) Overrunning clutches Freewheel Clutch|
|A . One Way Clutches Roller Type Parameters|
|Structure-||Types GFR, GFRN are roller type freewheels. They are bearing supported, using two 160.. series bearings, and require oil lubrication.|
|B . GFR80 One Way Clutches Roller Type Specification Sheet|
|TKN(Nm)||ni||na||d||D||D 2||D 4||D 3||t||L1||L||B||t1||b||f||G||z||[kg]|
|C . GFR Series One Way Clutches Roller Type Details|
One Way Clutches Roller Type mainly used as Overrunning and Indexing clutches,
rotates faster than the driving member.
discontinuous rotational movement.

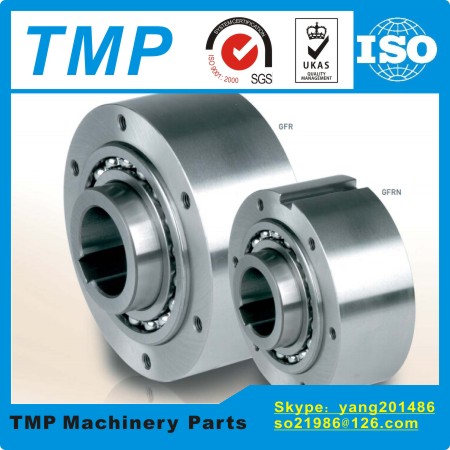

Types GFR, GFRN are roller type freewheels. They are bearing supported, using two
160.. series bearings, and require oil lubrication. These units may be used in designs
providing oil lubrication and sealing as on the example overleaf. The bearings must not
be axially stressed. Typically, types GFR, GFRN are used with the F series covers that
are designed to transmit torque, and provide oil lubrication and sealing. Usually these
covers are used in pairs according to combinations shown on the following pages.
The outer race of the GFR model is plain to receive and center any component bored to
H7 tolerance. Torque is transmitted by bolts through the cover plate in this case. Types
GFR, GFRN are identical except that type GFRN has a keyway on the outside diameter
to transmit the torque. Two paper seals are delivered with each unit to be placed between
the outer race and cover plates.
GFR12 GFR15 GFR20 GFR25 GFR30 GFR35 GFR40 GFR45 GFR50 GFR55 GFR60
GFR70 GFR80 GFR90 GFR100 GFR130 GFR150
GFRN55 GFRN60 GFRN70 GFRN80 GFRN90 GFRN100 GFRN130 GFRN150
Reducers , Flender Gearbox ,SEW Gearbox;
driven machine from the driving machine after it has been switched off.
or a variable speed.
clutch acts as a brake.
Clutch Release Bearings
Other Automotive Bearings
Needle Roller Bearings
|Related Search:||GFR80 One Way Clutches,GFR80 One Way Bearings,GFR80 Freewheel Clutches,GFR80 Indexing Clutches,GFR80 Overrunning Clutches|
