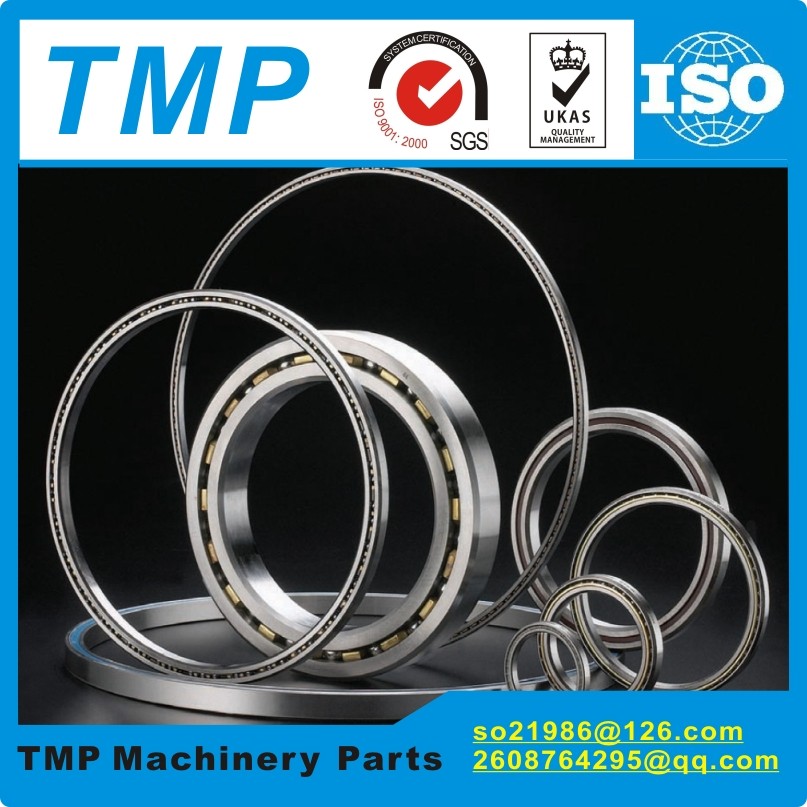

KD047AR0/KD047CP0/KD047XP0 Thin section ball bearings (4.75x5.75x0.5 inch) Kaydon

KD047AR0/KD047CP0/KD047XP0 Thin section ball bearings (4.75x5.75x0.5 inch) Kaydon

KD047AR0/KD047CP0/KD047XP0 Thin section ball bearings (4.75x5.75x0.5 inch) Kaydon

Product Details:

Place of Origin: China
Brand Name: TMP
Certification: ISO9001:2008
Model Number: KD047

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US$1-100
Packaging Details: Industrial Neutral Packing
Delivery Time: 10 days
Payment Terms: T/T,Paypal,Western Union,Escrow
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Angular Contact Ball Type: KD047AR0 Deep Groove Ball Type: KD047CP0
Four-Point Contact Ball Type: KD047XP0


KD047AR0/KD047CP0/KD047XP0 Reail-silm Thin-section bearings (4.75x5.75x0.5 in)(120.65x146.05x12.7 mm)   Precision  Robotic Bearings
 A . Reail-silm Thin-section bearings Parameters
Brand- TMP
Structure- Angular Contact Ball/Deep Groove Ball/Four-Point Contact Ball
Model number- KD047AR0/KD047CP0/KD047XP0
Inner ring(in)- 4.75
Outer ring(in)- 5.75
Width(in)- 0.5
Weight(lb)- 0.93
Materials- Chrome steel/GCR15/Stainless steel
Precision grade- P0
Lubrication type- Oil
Material(Ball)- Steel ball/Ceramic ball
Number of Row- Single rows
Section Type- Thin section
Quality- High speed, Low noise and Long life

 B . KD047AR0/KD047CP0/KD047XP0 Reail-silm Thin-section bearings Specification Sheet
Model
Number
Size(in) Land Diameters (in) Capacities in Pounds1 Weight
in
Pounds
Limiting
Speeds
(RPM)
Torque
Max. No
Load
(in-oz)
Bore Outside
Diameter
Land
Dia. L1
Land
Dia. L2
C'bore
Dia. L3
Radial Thrust Moment
Static Dyn. Static Dyn. Static Dyn.
KD047AR0 4.75 5.75 5.12 5.38 5.49 4150 1986 11970 4720 - - 0.93 - -
KD047CP0 4.75 5.75 5.12 5.38 - 3530 1892 - - - - 0.94 - -
KD047XP0 4.75 5.75 5.12 5.38 - 4150 1986 11970 4720 0 0 0.93 - -
Thin wall bearing
Thin section ball bearing

 C . Type A-KD/Type C-KD/Type X-KD series Reail-silm Thin-section bearings Details
Product Features

To support various load scenarios,Reail-SlIM Thin section ball bearings are available in three basic types: radial contact

 (type C), angular contact (type A), and fourpoint contact (type X) and in a variety of sizes ,or series (e.g., KA, KB, KC,

etc.). Reail-SlIM Thin section ball bearings are available with various separator options to space the rolling elements

uniformly and prevent contact between them.

Applications

Applications in Robotics, inspection equipment, satellites, cameras… anywhere precise positioning and lightweight

designs are critical.

 C . Type A-KD/Type C-KD/Type X-KD series Reail-silm Thin-section bearings 3 types
Type A-KD

Open REALI-SLIM Bearing Selections Type A Angular Contact, Snapover assembly permits use of a onepiece circular pocket ring

separator and greater ball complement. These bearings will accept radial load and single direction thrust load and are normally

used in conjunction with another bearing of similar construction. Type A bearings require the application of thrust to establish contact

 angle.

Type C-KD A Conrad assembled bearing designed primarily for application of radial load—deep ball grooves also permit application of thrust load in
either direction – often used in conjunction with another bearing.
Type X-KD

Standard bearing lines are most often designed to handle either radial or axial load conditions. The unique feature about the

REALI-SLIM Type X four-point contact bearing line is that the gothic arch geometry of the inner and outer races enables a single bearing

 to carry three types of
loading (radial, axial and moment) simultaneously. This makes it the bearing of choice for many applicationssince a single fourpoint

contact bearing can often replace two bearings, providing a simplified design.
Type X bearings may also be furnished with an internal diametral preload for those applications requiring greater stiffness or zero free

 play. This is accomplished by using balls that are larger than the space provided in the raceways. The balls and raceways, therefore,

have some elastic deformation in the absence of an external load

 C . Type A-KD/Type C-KD/Type X-KD series Reail-silm Thin-section bearings Model Number
Type A-KD

KD040AR0,KD042AR0,KD045AR0,KD047AR0,KD050AR0,KD055AR0,KD060AR0,KD065AR0,KD070AR0,KD075AR0,KD080AR0,

KD090AR0,KD100AR0,KD110AR0,KD120AR0,KD140AR0,KD160AR0,KD180AR0,KD200AR0,KD210AR0,KD250AR0,KD300AR0

Type C-KD

KD040CP0.KD042CP0.KD045CP0.KD047CP0.KD050CP0.KD055CP0.KD060CP0.KD065CP0.KD070CP0.KD075CP0.KD080CP0.

KD090CP0.KD100CP0.KD110CP0.KD120CP0.KD140CP0.KD160CP0.KD180CP0.KD200CP0.KD210CP0.KD250CP0.KD300CP0

Type X-KD

KD040XP0,KD042XP0,KD045XP0,KD047XP0,KD050XP0,KD055XP0,KD060XP0,KD065XP0,KD070XP0,KD075XP0,KD080XP0,KD090XP0,

KD100XP0,KD110XP0,KD120XP0,KD140XP0,KD160XP0,KD180XP0,KD200XP0,KD210XP0,KD250XP0,KD300XP0
