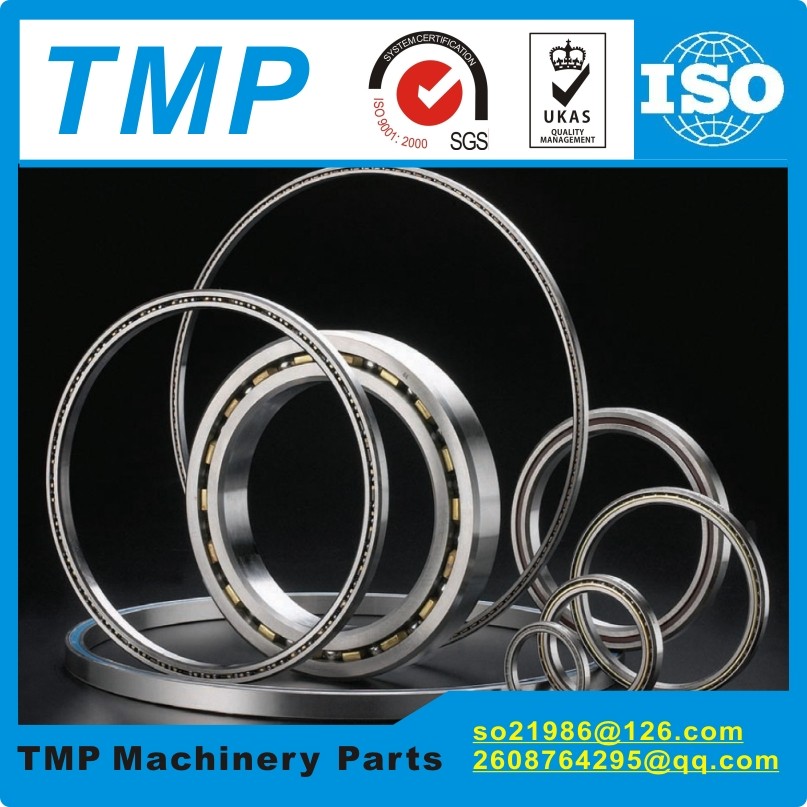

KC120AR0/KC120CP0/KC120XP0 Thin section ball bearings (12x12.75x0.375 inch) Kaydon type
Product Details:
Place of Origin:
China
Brand Name:
TMP
Certification:
ISO9001:2008
Model Number:
KC120
Payment & Shipping Terms:
Minimum Order Quantity:
1
Price:
US$1-100
Packaging Details:
Industrial Neutral Packing
Delivery Time:
10 days
Payment Terms:
T/T,Paypal,Western Union,Escrow
Supply Ability:
1000 pcs/month
Contact Now
Detailed Product Description
Angular Contact Ball Type:
KC120AR0
Deep Groove Ball Type:
KC120CP0
Four-Point Contact Ball Type:
KC120XP0
KC120AR0/KC120CP0/KC120XP0 Reail-silm Thin-section bearings (12x12.75x0.375 in)(304.8x323.85x9.525 mm) Open Type miniature ball bearing
A . Reail-silm Thin-section bearings Parameters
Brand-
TMP
Structure-
Angular Contact Ball/Deep Groove Ball/Four-Point Contact Ball
Model number-
KC120AR0/KC120CP0/KC120XP0
Inner ring(in)-
12
Outer ring(in)-
12.75
Width(in)-
0.375
Weight(lb)-
1.23
Materials-
Chrome steel/GCR15/Stainless steel
Precision grade-
P0
Lubrication type-
Oil
Material(Ball)-
Steel ball/Ceramic ball
Number of Row-
Single rows
Section Type-
Thin section
Quality-
High speed, Low noise and Long life
B . KC120AR0/KC120CP0/KC120XP0 Reail-silm Thin-section bearings Specification Sheet
Model
Size(in)
Land Diameters (in)
Capacities in Pounds1
Weight
Limiting
Torque
Bore
Outside
Land
Land
C'bore
Radial
Thrust
Moment
Static
Dyn.
Static
Dyn.
Static
Dyn.
KC120AR0
12
12.75
12.277
12.473
12.54
7290
2147
21040
5570
-
-
1.23
-
-
KC120CP0
12
12.75
12.277
12.473
-
5950
1974
-
-
-
-
1.25
-
-
KC120XP0
12
12.75
12.277
12.473
-
7290
2147
21040
5570
0
0
1.23
-
-
C . Reail-silm Thin-section bearings Details
To support various load scenarios,Reail-SlIM Thin section ball bearings are available in three basic types: Type 1-Radial contact, Type 2-Angular contact and Type 3-Four point contact . Reail-SlIM Thin section ball bearings are available with various separator options to space the rolling elements uniformly and prevent contact between them.
D . Thin-section bearings Model Number
Type 1-Radial
KC040AR0/KYC040/CSEC040 KC042AR0/KYC042/CSEC042 KC045AR0/KYC045/CSEC045
Type 2-Angular
KC040CP0/KRC040/CSCC040 KC042CP0/KRC042/CSCC042 KC045CP0/KRC045/CSCC045
Type 3-Four
KC040XP0/KXC040/CSXC040 KC042XP0/KXC042/CSXC042 KC045XP0/KXC045/CSXC045
