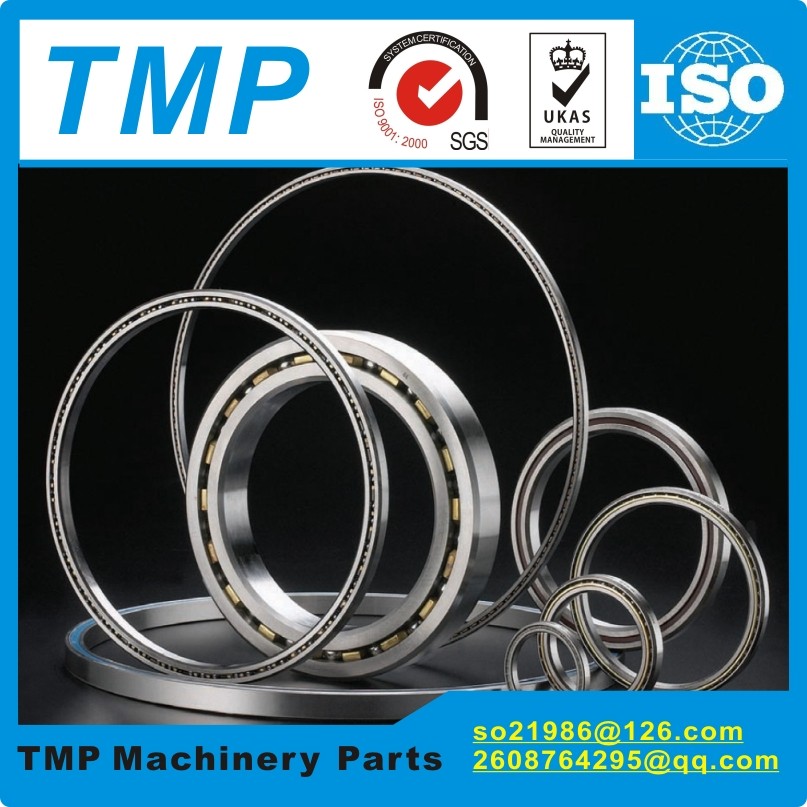

KC040AR0/KC040CP0/KC040XP0 Thin section ball bearings (4x4.75x0.375 inch) Kaydon type

KC040AR0/KC040CP0/KC040XP0 Thin section ball bearings (4x4.75x0.375 inch) Kaydon type

KC040AR0/KC040CP0/KC040XP0 Thin section ball bearings (4x4.75x0.375 inch) Kaydon type

Product Details:

Place of Origin: China
Brand Name: TMP
Certification: ISO9001:2008
Model Number: KC040

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US$1-100
Packaging Details: Industrial Neutral Packing
Delivery Time: 10 days
Payment Terms: T/T,Paypal,Western Union,Escrow
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Angular Contact Ball Type: KC040AR0 Deep Groove Ball Type: KC040CP0
Four-Point Contact Ball Type: KC040XP0


KC040AR0/KC040CP0/KC040XP0 Reail-silm Thin-section bearings (4x4.75x0.375 in)(101.6x120.65x9.525 mm)  Kaydon Types Super Slim  Robotic Bearings
 A . Reail-silm Thin-section bearings Parameters
Brand- TMP
Structure- Angular Contact Ball/Deep Groove Ball/Four-Point Contact Ball
Model number- KC040AR0/KC040CP0/KC040XP0
Inner ring(in)- 4
Outer ring(in)- 4.75
Width(in)- 0.375
Weight(lb)- 0.44
Materials- Chrome steel/GCR15/Stainless steel
Precision grade- P0
Lubrication type- Oil
Material(Ball)- Steel ball/Ceramic ball
Number of Row- Single rows
Section Type- Thin section
Quality- High speed, Low noise and Long life

 B . KC040AR0/KC040CP0/KC040XP0 Reail-silm Thin-section bearings Specification Sheet
Model
Number
Size(in) Land Diameters (in) Capacities in Pounds1 Weight
in
Pounds
Limiting
Speeds
(RPM)
Torque
Max. No
Load
(in-oz)
Bore Outside
Diameter
Land
Dia. L1
Land
Dia. L2
C'bore
Dia. L3
Radial Thrust Moment
Static Dyn. Static Dyn. Static Dyn.
KC040AR0 4 4.75 4.277 4.473 4.554 2550 1153 7360 2770 - - 0.44 - -
KC040CP0 4 4.75 4.277 4.473 - 2100 1073 - - - - 0.45 - -
KC040XP0 4 4.75 4.277 4.473 - 2550 1153 7360 2770 0 0 0.44 - -
      Thin section bearing
Thin section ball bearing

 C . Reail-silm Thin-section bearings Details

To support various load scenarios,Reail-SlIM Thin section ball bearings are available in three basic types: Type 1-Radial contact, Type 2-Angular contact and Type 3-Four point contact . Reail-SlIM Thin section ball bearings are available with various separator options to space the rolling elements uniformly and prevent contact between them.

 D . Thin-section bearings Model Number

Type 1-Radial
contact

KC040AR0/KYC040/CSEC040 KC042AR0/KYC042/CSEC042 KC045AR0/KYC045/CSEC045
KC047AR0/KYC047/CSEC047 KC050AR0/KYC050/CSEC050 KC055AR0/KYC055/CSEC055
KC060AR0/KYC060/CSEC060 KC065AR0/KYC065/CSEC065 KC070AR0/KYC070/CSEC070
KC075AR0/KYC075/CSEC075 KC080AR0/KYC080/CSEC080 KC090AR0/KYC090/CSEC090
KC100AR0/KYC100/CSEC100 KC110AR0/KYC110/CSEC110 KC120AR0/KYC120/CSEC120
KC140AR0/KYC140/CSEC140 KC160AR0/KYC160/CSEC160 KC180AR0/KYC180/CSEC180
KC200AR0/KYC200/CSEC200 KC250AR0/KYC250/CSEC250 KC300AR0/KYC300/CSEC300

Type 2-Angular
contact

KC040CP0/KRC040/CSCC040 KC042CP0/KRC042/CSCC042 KC045CP0/KRC045/CSCC045
KC047CP0/KRC047/CSCC047 KC050CP0/KRC050/CSCC050 KC055CP0/KRC055/CSCC055
KC060CP0/KRC060/CSCC060 KC065CP0/KRC065/CSCC065 KC070CP0/KRC070/CSCC070
KC075CP0/KRC075/CSCC075 KC080CP0/KRC080/CSCC080 KC090CP0/KRC090/CSCC090
KC100CP0/KRC100/CSCC100 KC110CP0/KRC110/CSCC110 KC120CP0/KRC120/CSCC120
KC140CP0/KRC140/CSCC140 KC160CP0/KRC160/CSCC160 KC180CP0/KRC180/CSCC180
KC200CP0/KRC200/CSCC200 KC250CP0/KRC250/CSCC250 KC300CP0/KRC300/CSCC300

Type 3-Four
point
contact
KC040XP0/KXC040/CSXC040 KC042XP0/KXC042/CSXC042 KC045XP0/KXC045/CSXC045
KC047XP0/KXC047/CSXC047 KC050XP0/KXC050/CSXC050 KC055XP0/KXC055/CSXC055
KC060XP0/KXC060/CSXC060 KC065XP0/KXC065/CSXC065 KC070XP0/KXC070/CSXC070
KC075XP0/KXC075/CSXC075 KC080XP0/KXC080/CSXC080 KC090XP0/KXC090/CSXC090
KC100XP0/KXC100/CSXC100 KC110XP0/KXC110/CSXC110 KC120XP0/KXC120/CSXC120
KC140XP0/KXC140/CSXC140 KC160XP0/KXC160/CSXC160 KC180XP0/KXC180/CSXC180
KC200XP0/KXC200/CSXC200 KC250XP0/KXC250/CSXC250 KC300XP0/KXC300/CSXC300
