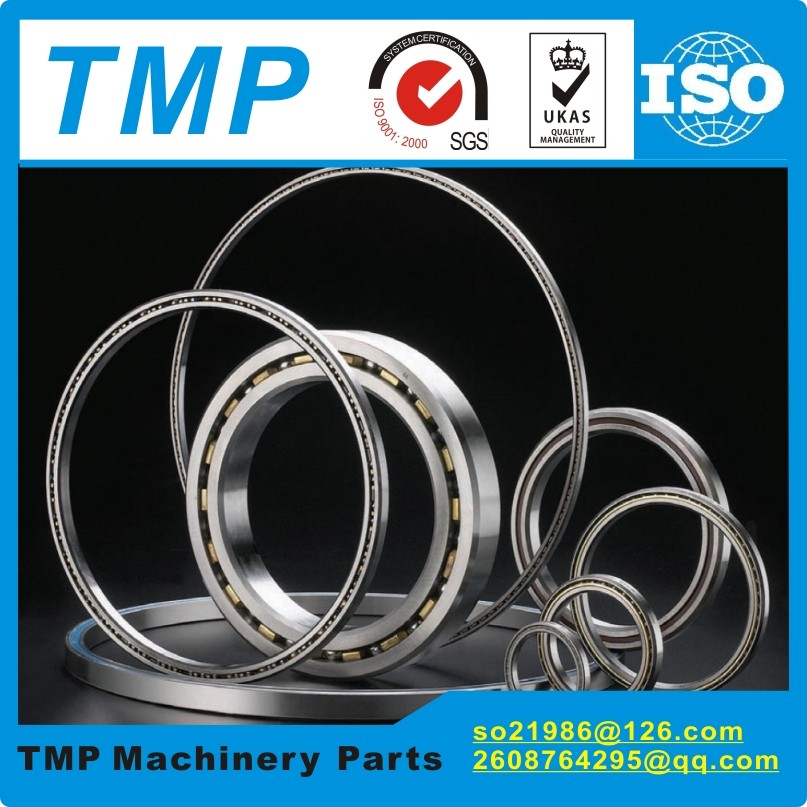

CSEC080/CSCC080/CSXC080 INA Thin Section Bearing (8x8.75x0.375 inch) KYC080/KRC080/KXC080
Product Details:
Place of Origin: |
China |
Brand Name: |
TMP |
Certification: |
ISO9001:2008 |
Model Number: |
KC080 |
Payment & Shipping Terms:
Minimum Order Quantity: |
1 |
Price: |
US$1-100 |
Packaging Details: |
Industrial Neutral Packing |
Delivery Time: |
10 days |
Payment Terms: |
T/T,Paypal,Western Union,Escrow |
Supply Ability: |
1000 pcs/month |
Contact Now
Detailed Product Description
Angular Contact Ball Type: |
CSEC080 |
Deep Groove Ball Type: |
CSCC080 |
Four-Point Contact Ball Type: |
CSXC080 |
CSEC080/CSCC080/CSXC080 INA Thin Section Bearing (8x8.75x0.375 inch)(203.2x222.25x9.525 mm) NTN-KYC080/KRC080/KXC080 |
A . Parameters |
Brand- |
TMP |
Structure- |
Angular Contact Ball/Deep Groove Ball/Four-Point Contact Ball |
Model number
(INA)- |
CSEC080/CSCC080/CSXC080 |
Model number
(Kaydon)- |
KC080AR0/KC080CP0/KC080XP0 |
Model number
(NTN)- |
KYC080/KRC080/KXC080 |
Inner ring(in)- |
8 |
Outer ring(in)- |
8.75 |
Width(in)- |
0.375 |
Weight(lb)- |
0.84 |
Materials- |
Chrome steel/GCR15/Stainless steel |
Precision grade- |
P0 |
Lubrication type- |
Oil |
Material(Ball)- |
Steel ball/Ceramic ball |
Number of Row- |
Single rows |
Section Type- |
Thin section |
Quality- |
High speed, Low noise and Long life |
|
B . Thin Section Ball Bearing-Specification Sheet |
Model
Number |
Size(in) |
Land Diameters (in) |
Capacities in Pounds1 |
Weight
in
Pounds |
Interchange |
Bore |
Outside
Diameter |
Land
Dia. L1 |
Land
Dia. L2 |
C'bore
Dia. L3 |
Radial |
Thrust |
Moment |
Kaydon |
NTN |
Static |
Dyn. |
Static |
Dyn. |
Static |
Dyn. |
CSEC080 |
8 |
8.75 |
8.277 |
8.473 |
8.548 |
4950 |
1708 |
14280 |
4300 |
- |
- |
0.84 |
KC080AR0 |
KYC080 |
CSCC080 |
8 |
8.75 |
8.277 |
8.473 |
- |
4030 |
1570 |
- |
- |
- |
- |
0.84 |
KC080CP0 |
KRC080 |
CSXC080 |
8 |
8.75 |
8.277 |
8.473 |
- |
4950 |
1708 |
14280 |
4300 |
0 |
0 |
0.84 |
KC080XP0 |
KXC080 |


C . Reail-silm Thin-section bearings Details
To support various load scenarios,Reail-SlIM Thin section ball bearings are available in three basic types: Type 1-Radial contact, Type 2-Angular contact and Type 3-Four point contact . Reail-SlIM Thin section ball bearings are available with various separator options to space the rolling elements uniformly and prevent contact between them.
D . Thin-section bearings Model Number
Type 1-Radial
contact |
KC040AR0/KYC040/CSEC040 KC042AR0/KYC042/CSEC042 KC045AR0/KYC045/CSEC045
KC047AR0/KYC047/CSEC047 KC050AR0/KYC050/CSEC050 KC055AR0/KYC055/CSEC055
KC060AR0/KYC060/CSEC060 KC065AR0/KYC065/CSEC065 KC070AR0/KYC070/CSEC070
KC075AR0/KYC075/CSEC075 KC080AR0/KYC080/CSEC080 KC090AR0/KYC090/CSEC090
KC100AR0/KYC100/CSEC100 KC110AR0/KYC110/CSEC110 KC120AR0/KYC120/CSEC120
KC140AR0/KYC140/CSEC140 KC160AR0/KYC160/CSEC160 KC180AR0/KYC180/CSEC180
KC200AR0/KYC200/CSEC200 KC250AR0/KYC250/CSEC250 KC300AR0/KYC300/CSEC300
|
Type 2-Angular
contact |
KC040CP0/KRC040/CSCC040 KC042CP0/KRC042/CSCC042 KC045CP0/KRC045/CSCC045
KC047CP0/KRC047/CSCC047 KC050CP0/KRC050/CSCC050 KC055CP0/KRC055/CSCC055
KC060CP0/KRC060/CSCC060 KC065CP0/KRC065/CSCC065 KC070CP0/KRC070/CSCC070
KC075CP0/KRC075/CSCC075 KC080CP0/KRC080/CSCC080 KC090CP0/KRC090/CSCC090
KC100CP0/KRC100/CSCC100 KC110CP0/KRC110/CSCC110 KC120CP0/KRC120/CSCC120
KC140CP0/KRC140/CSCC140 KC160CP0/KRC160/CSCC160 KC180CP0/KRC180/CSCC180
KC200CP0/KRC200/CSCC200 KC250CP0/KRC250/CSCC250 KC300CP0/KRC300/CSCC300
|
Type 3-Four
point
contact |
KC040XP0/KXC040/CSXC040 KC042XP0/KXC042/CSXC042 KC045XP0/KXC045/CSXC045
KC047XP0/KXC047/CSXC047 KC050XP0/KXC050/CSXC050 KC055XP0/KXC055/CSXC055
KC060XP0/KXC060/CSXC060 KC065XP0/KXC065/CSXC065 KC070XP0/KXC070/CSXC070
KC075XP0/KXC075/CSXC075 KC080XP0/KXC080/CSXC080 KC090XP0/KXC090/CSXC090
KC100XP0/KXC100/CSXC100 KC110XP0/KXC110/CSXC110 KC120XP0/KXC120/CSXC120
KC140XP0/KXC140/CSXC140 KC160XP0/KXC160/CSXC160 KC180XP0/KXC180/CSXC180
KC200XP0/KXC200/CSXC200 KC250XP0/KXC250/CSXC250 KC300XP0/KXC300/CSXC300 |
