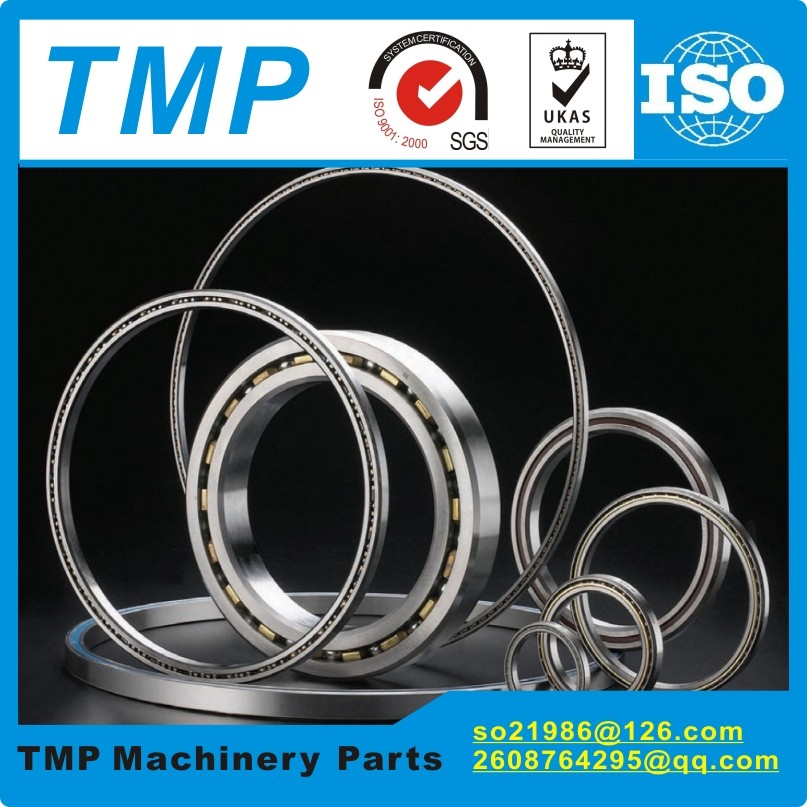

KC050AR0/KC050CP0/KC050XP0 Thin section ball bearings (5x5.75x0.375 inch) Kaydon type
Product Details:
Place of Origin:
China
Brand Name:
TMP
Certification:
ISO9001:2008
Model Number:
KC050
Payment & Shipping Terms:
Minimum Order Quantity:
1
Price:
US$1-100
Packaging Details:
Industrial Neutral Packing
Delivery Time:
10 days
Payment Terms:
T/T,Paypal,Western Union,Escrow
Supply Ability:
1000 pcs/month
Contact Now
Detailed Product Description
Angular Contact Ball Type:
KC050AR0
Deep Groove Ball Type:
KC050CP0
Four-Point Contact Ball Type:
KC050XP0
KC050AR0/KC050CP0/KC050XP0 Reail-silm Thin-section bearings (5x5.75x0.375 in)(127x146.05x9.525 mm) angular contact bearing Robotic Bearings
A . Reail-silm Thin-section bearings Parameters
Brand-
TMP
Structure-
Angular Contact Ball/Deep Groove Ball/Four-Point Contact Ball
Model number-
KC050AR0/KC050CP0/KC050XP0
Inner ring(in)-
5
Outer ring(in)-
5.75
Width(in)-
0.375
Weight(lb)-
0.54
Materials-
Chrome steel/GCR15/Stainless steel
Precision grade-
P0
Lubrication type-
Oil
Material(Ball)-
Steel ball/Ceramic ball
Number of Row-
Single rows
Section Type-
Thin section
Quality-
High speed, Low noise and Long life
B . KC050AR0/KC050CP0/KC050XP0 Reail-silm Thin-section bearings Specification Sheet
Model
Size(in)
Land Diameters (in)
Capacities in Pounds1
Weight
Limiting
Torque
Bore
Outside
Land
Land
C'bore
Radial
Thrust
Moment
Static
Dyn.
Static
Dyn.
Static
Dyn.
KC050AR0
5
5.75
5.277
5.473
5.552
3180
1313
9170
3200
-
-
0.54
-
-
KC050CP0
5
5.75
5.277
5.473
-
2590
1209
-
-
-
-
0.58
-
-
KC050XP0
5
5.75
5.277
5.473
-
3180
1313
9170
3200
0
0
0.54
-
-
C . Reail-silm Thin-section bearings Details
To support various load scenarios,Reail-SlIM Thin section ball bearings are available in three basic types: Type 1-Radial contact, Type 2-Angular contact and Type 3-Four point contact . Reail-SlIM Thin section ball bearings are available with various separator options to space the rolling elements uniformly and prevent contact between them.
D . Thin-section bearings Model Number
Type 1-Radial
KC040AR0/KYC040/CSEC040 KC042AR0/KYC042/CSEC042 KC045AR0/KYC045/CSEC045
Type 2-Angular
KC040CP0/KRC040/CSCC040 KC042CP0/KRC042/CSCC042 KC045CP0/KRC045/CSCC045
Type 3-Four
KC040XP0/KXC040/CSXC040 KC042XP0/KXC042/CSXC042 KC045XP0/KXC045/CSXC045
