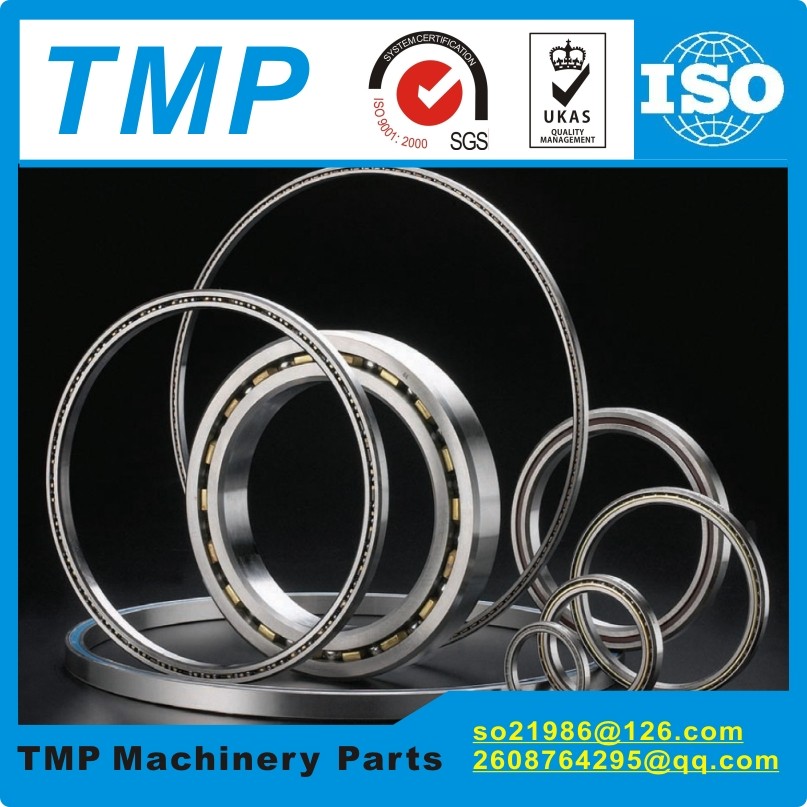

CSEA055/CSCA055/CSXA055 Thin section bearing (5.5x6x0.25 inch) KYA055/KRA055/KXA055

CSEA055/CSCA055/CSXA055 Thin section bearing (5.5x6x0.25 inch) KYA055/KRA055/KXA055

CSEA055/CSCA055/CSXA055 Thin section bearing (5.5x6x0.25 inch) KYA055/KRA055/KXA055

Product Details:

Place of Origin: China
Brand Name: TMP
Certification: ISO9001:2008
Model Number: KA055

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US$1-100
Packaging Details: Industrial Neutral Packing
Delivery Time: 10 days
Payment Terms: T/T,Paypal,Western Union,Escrow
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Angular Contact Ball Type: CSEA055 Deep Groove Ball Type: CSCA055
Four-Point Contact Ball Type: CSXA055


CSEA055/CSCA055/CSXA055 INA Thin Section Bearing (5.5x6x0.25 inch)(139.7x152.4x6.35 mm) NTN-KYA055/KRA055/KXA055
 A .  Parameters
Brand- TMP
Structure- Angular Contact Ball/Deep Groove Ball/Four-Point Contact Ball
Model number
(INA)-
CSEA055/CSCA055/CSXA055
Model number
(Kaydon)-
KA055AR0/KA055CP0/KA055XP0
Model number
(NTN)-
KYA055/KRA055/KXA055
Inner ring(in)- 5.5
Outer ring(in)- 6
Width(in)- 0.25
Weight(lb)- 0.25
Materials- Chrome steel/GCR15/Stainless steel
Precision grade- P0
Lubrication type- Oil
Material(Ball)- Steel ball/Ceramic ball
Number of Row- Single rows
Section Type- Thin section
Quality- High speed, Low noise and Long life

 B . Thin Section Ball Bearing-Specification Sheet
Model
Number
Size(in) Land Diameters (in) Capacities in Pounds1 Weight
in
Pounds
Interchange
Bore Outside
Diameter
Land
Dia. L1
Land
Dia. L2
C'bore
Dia. L3
Radial Thrust Moment Kaydon NTN
Static Dyn. Static Dyn. Static Dyn.
CSEA055 5.5 6 5.686 5.814 5.863 2020 715 5820 1800 - - 0.25 KA055AR0 KYA055
CSCA055 5.5 6 5.686 5.814 - 1750 685 - - - - 0.25 KA055CP0 KRA055
CSXA055 5.5 6 5.686 5.814 - 2020 715 5820 1800 0 0 0.25 KA055XP0 KXA055

Thin section ball bearing KAThin section ball bearing
 C . Type A-KA/Type C-KA/Type X-KA series Reail-silm Thin-section bearings Details
Product Features

To support various load scenarios,Reail-SlIM Thin section ball bearings are available in three basic

types: radial contact (type C), angular contact (type A), and fourpoint contact (type X) and in a variety

of sizes ,or series (e.g., KA, KB, KC, etc.). Reail-SlIM Thin section ball bearings are available with

various separator options to space the rolling elements uniformly and prevent contact between them.

Applications

Applications in Robotics, inspection equipment, satellites, cameras… anywhere precise positioning

and lightweight designs are critical.

 C . Type A-KA/Type C-KA/Type X-KA series Reail-silm Thin-section bearings 3 types
Type A-KA

Open REALI-SLIM Bearing Selections Type A Angular Contact, Snapover assembly permits use of a onepiece

circular pocket ring separator and greater ball complement. These bearings will accept radial load and

 single direction thrust load and are normally used in conjunction with another bearing of similar

construction. Type A bearings require the application of thrust to establish contact angle.

Type C-KA

A Conrad assembled bearing designed primarily for application of radial load—deep ball grooves also

permit application of thrust load in
either direction – often used in conjunction with another bearing.

Type X-KA

Standard bearing lines are most often designed to handle either radial or axial load conditions. The

 unique feature about the  REALI-SLIM Type X four-point contact bearing line is that the gothic arch

geometry of the inner and outer races enables a single bearing to carry three types of
loading (radial, axial and moment) simultaneously. This makes it the bearing of choice for many

applicationssince a single fourpoint contact bearing can often replace two bearings, providing a simplified design.
Type X bearings may also be furnished with an internal diametral preload for those applications requiring greater

stiffness or zero free play. This is accomplished by using balls that are larger than the space provided

in the raceways. The balls and raceways, therefore, have some elastic deformation in the absence of an external load

 C . Type A-KA/Type C-KA/Type X-KA series Reail-silm Thin-section bearings Model Number
Type A-KA

KA020AR0 KA025AR0 KA030AR0 KA035AR0 KA040AR0 KA042AR0 KA045AR0 KA047AR0 KA050AR0

KA055AR0 KA060AR0 KA065AR0 KA070AR0 KA075AR0 KA080AR0 KA090AR0 KA100AR0 KA110AR0 KA120AR0

Type C-KA

KA020CP0.KA025CP0.KA030CP0.KA035CP0.KA040CP0.KA042CP0.KA045CP0.KA047CP0.KA050CP0.KA055CP0.

KA060CP0.KA065CP0.KA070CP0.KA075CP0.KA080CP0.KA090CP0 .KA100CP0.KA110CP0.KA120CP0

Type X-KA

KA020XP0,KA025XP0,KA030XP0,KA035XP0,KA040XP0,KA042XP0,KA045XP0,KA047XP0,KA050XP0,KA055XP0,

KA060XP0,KA065XP0,KA070XP0,KA075XP0,KA080XP0,KA090XP0,KA100XP0,KA110XP0,KA120XP0



TMP Bearrings, Crossed roller bearing , Thin section bearing , Turntable bearing , Roller Bearing ,Bearing ,Slewing bearing ,Robotic bearing ,Rotary Table Bearing , YRT Rotary Table Bearing ,Angular Contact Ball Bearing,Thin section ball bearing

Thin section ball bearing TMP
