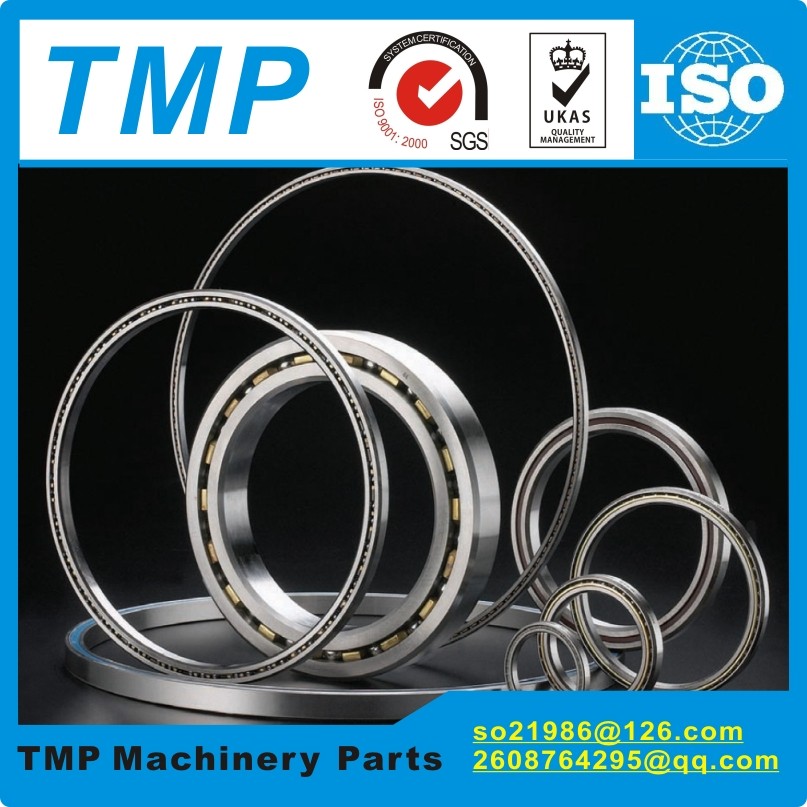

C . Type A-KA/Type C-KA/Type X-KA series Reail-silm Thin-section bearings Details |
|
Product Features |
To support various load scenarios,Reail-SlIM Thin section ball bearings are available in three basic
types: radial contact (type C), angular contact (type A), and fourpoint contact (type X) and in a variety
of sizes ,or series (e.g., KA, KB, KC, etc.). Reail-SlIM Thin section ball bearings are available with
various separator options to space the rolling elements uniformly and prevent contact between them.
|
|
Applications |
Applications in Robotics, inspection equipment, satellites, cameras… anywhere precise positioning
and lightweight designs are critical.
|
|
C . Type A-KA/Type C-KA/Type X-KA series Reail-silm Thin-section bearings 3 types |
|
Type A-KA |
Open REALI-SLIM Bearing Selections Type A Angular Contact, Snapover assembly permits use of a onepiece
circular pocket ring separator and greater ball complement. These bearings will accept radial load and
single direction thrust load and are normally used in conjunction with another bearing of similar
construction. Type A bearings require the application of thrust to establish contact angle.
|
|
Type C-KA |
A Conrad assembled bearing designed primarily for application of radial load—deep ball grooves also
permit application of thrust load in
either direction – often used in conjunction with another bearing.
|
|
Type X-KA |
Standard bearing lines are most often designed to handle either radial or axial load conditions. The
unique feature about the REALI-SLIM Type X four-point contact bearing line is that the gothic arch
geometry of the inner and outer races enables a single bearing to carry three types of
loading (radial, axial and moment) simultaneously. This makes it the bearing of choice for many
applicationssince a single fourpoint contact bearing can often replace two bearings, providing a simplified design.
Type X bearings may also be furnished with an internal diametral preload for those applications requiring greater
stiffness or zero free play. This is accomplished by using balls that are larger than the space provided
in the raceways. The balls and raceways, therefore, have some elastic deformation in the absence of an external load
|
|
C . Type A-KA/Type C-KA/Type X-KA series Reail-silm Thin-section bearings Model Number |
|
Type A-KA |
KA020AR0 KA025AR0 KA030AR0 KA035AR0 KA040AR0 KA042AR0 KA045AR0 KA047AR0 KA050AR0
KA055AR0 KA060AR0 KA065AR0 KA070AR0 KA075AR0 KA080AR0 KA090AR0 KA100AR0 KA110AR0 KA120AR0
|
|
Type C-KA |
KA020CP0.KA025CP0.KA030CP0.KA035CP0.KA040CP0.KA042CP0.KA045CP0.KA047CP0.KA050CP0.KA055CP0.
KA060CP0.KA065CP0.KA070CP0.KA075CP0.KA080CP0.KA090CP0 .KA100CP0.KA110CP0.KA120CP0
|
|
Type X-KA |
KA020XP0,KA025XP0,KA030XP0,KA035XP0,KA040XP0,KA042XP0,KA045XP0,KA047XP0,KA050XP0,KA055XP0,
KA060XP0,KA065XP0,KA070XP0,KA075XP0,KA080XP0,KA090XP0,KA100XP0,KA110XP0,KA120XP0
|
