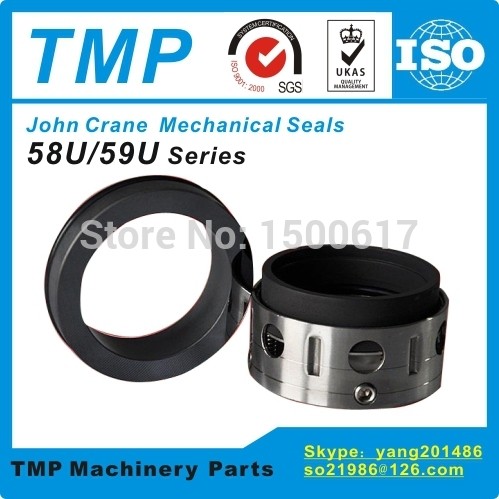

T59U-38mm John Crane Mechanical Seals (38*59*52.5mm)|Type 59U PTFE Wedge Oring pusher Seal

T59U-38mm John Crane Mechanical Seals (38*59*52.5mm)|Type 59U PTFE Wedge Oring pusher Seal

T59U-38mm John Crane Mechanical Seals (38*59*52.5mm)|Type 59U PTFE Wedge Oring pusher Seal

Product Details:

Place of Origin: CHINA
Brand Name: TLANMP
Certification: ISO 9001:2005
Model Number: 59U-38mm

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $1~$500
Packaging Details: Industrial neutral packaging (Paper Box)
Delivery Time: 1-3 day after Payment
Payment Terms: T/T,WU,Paypal,Alipay etc
Supply Ability: 1~1000 pieces per month
Contact Now
Detailed Product Description
Standard Or Nonstandard: Standard Style: Mechanical Seal
Material: PTFE



T59U-38mm John Crane Mechanical Seals (38*59*52.5mm)|Type 59U PTFE Wedge O-ring pusher Seal for Shaft Size 38mm Pumps
Series John Crane Seals Type 59U
Model Number T59U-38mm
Shaft Size 38 mm
Introduction
John Crane Type 59U Multi Spring Mechanical Seal Rubber Pump Seal;

58U/59U Multi Spring Mechanical Seal Operating Limits
Temperature: -20°C~+200°C
Pressure: ≤1.7MPa
Speed: ≤25m/s
Application
Date
Stationary Ring (SiC/TC/Ceramic)
Rotary Ring (SiC/TC/Carbon)
Secondary Seal (VITON/PTFE/PTFE+VITON)
Spring & Other Parts (SS304/SS316)
58/59 John Crane Mechanical Seals58/59 John Crane Mechanical Seals
