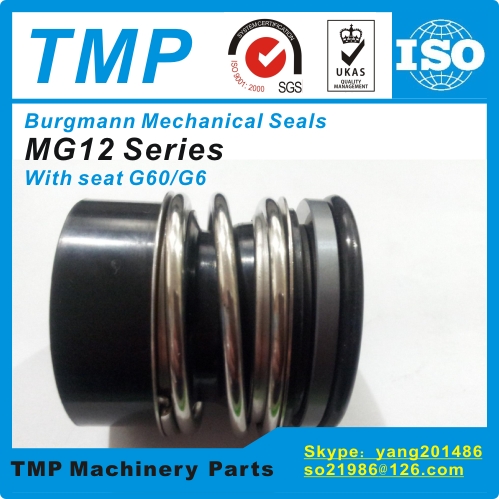

MG12-30 Burgmann Mechanical Seals MG12 Series for Shaft Size 30mm Pumps (SiC/SiC/FKM)-Water Pump Seals
Product Details:
| Place of Origin: |
CHINA |
| Brand Name: |
TLANMP |
| Certification: |
ISO 9001:2005 |
| Model Number: |
MG12-30 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
$1~$500 |
| Packaging Details: |
Industrial neutral packaging (Paper Box) |
| Delivery Time: |
1-3 day after Payment |
| Payment Terms: |
T/T,WU,Paypal,Alipay etc |
| Supply Ability: |
1~1000 pieces per month |
| Minimum Order Quantity: |
1 |
Contact Now
Detailed Product Description
| Highlight: |
Burgmann mechanical seals, Bellow seal, Water Pump Seals |
MG12-30 Burgmann Mechanical Seals MG12 Series for Shaft Size 30mm Pumps (SiC/SiC/FKM) (30x49x42.5mm) Rubber Bellow Seals |
| Series | Burgmann Mechanical Seals MG12 Series |
| Model Number | MG12-30 |
| Shaft Size | 30mm |
| Introduction | MG12:Dimensions, items and designations same as for MG1, butwith an extended bellows tailto achieve thefittinglength L1kaccording to EN12756 in combination with seat G6 or G60. |
Application
Date | OPERATING LIMITS
Temperature: -20°C~+120°C
Pressure: ≤1.2MPa
Speed: ≤10m/s Equivalent to: • Burgmann MG12 seal • Flowserve Pac-Seal 192 • Hecker HN 410KU • Roten L3K |
| Materials | • Stationary Ring(Ceramic/SiC/TC)
• Rotary Ring(Carbon/SiC/TC)
• Secondary Seal(NBR/EPDM/FKM)
• Spring & Other Parts(SUS304/SUS316) |
