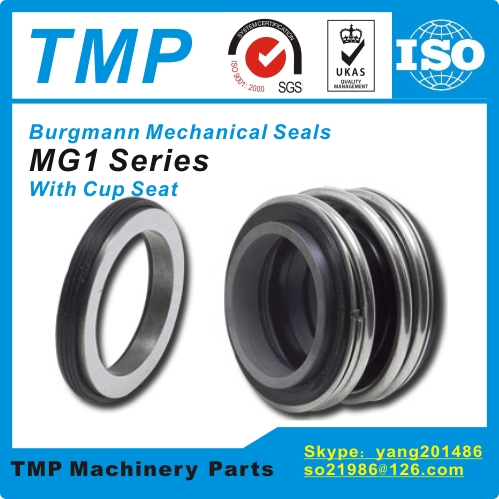

MG1-18mm Eagle Burgmann Mechanical Seals MG1 Series for Shaft size 18mm Pumps

MG1-18mm Eagle Burgmann Mechanical Seals MG1 Series for Shaft size 18mm Pumps

MG1-18mm Eagle Burgmann Mechanical Seals MG1 Series for Shaft size 18mm Pumps

Product Details:

Place of Origin: CHINA
Brand Name: TLANMP
Certification: ISO 9001:2005
Model Number: MG1-18

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $1~$500
Packaging Details: Industrial neutral packaging (Paper Box)
Delivery Time: 1-3 day after Payment
Payment Terms: T/T,WU,Paypal,Alipay etc
Supply Ability: 1~1000 pieces per month
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
High Light:

Burgmann mechanical seals

,

Mechanical seals

,

Pump Seals

MG1-18mm Eagle Burgmann Mechanical Seals MG1 Series for Shaft size 18mmPumps Material-SIC/SIC/VITON
SeriesBurgmann Mechanical Seals MG1
Model NumberMG1-18mm
Shaft Size18mm
Introduction

Mechanical seals of the MG series are amongst the most commonly used. The bellows is not subjected to any

torsional stress and its ingenious design incorporates several functions, as seal face carrier, secondary sealing

element and drive collar. The seal face is driven through the spring and “L“-rings. There are no bonded joints and all the face materials are interchangeable without having to modify any

dimensions. Highly recommended for duties with media containing solids eg. in waste water and sewage applications

Application
Date

OPERATING LIMITS
Temperature:-20°C~+120°C
Pressure: ≤1.2MPa
Speed: ≤10m/s

Equivalent to:
• Burgmann MG1 seal
• Flowserve Pac-Seal 190
• Hecker HN 410SU
• Roten L3
MaterialsStationary Ring(Ceramic/SiC/TC)
Rotary Ring(Carbon/SiC/TC)
Secondary Seal(NBR/EPDM/VITON)
Spring & Other Parts(SUS304/SUS316)

MG1 sealMG1 mechanical seal
