MFL85N-48 Burgmann Mechanical Seals (48x61.9x45mm) |MFL85N Series Metal bellows Seals

MFL85N-48 Burgmann Mechanical Seals (48x61.9x45mm) |MFL85N Series Metal bellows Seals

MFL85N-48 Burgmann Mechanical Seals (48x61.9x45mm) |MFL85N Series Metal bellows Seals

Product Details:

Place of Origin: CHINA
Brand Name: TLANMP
Certification: ISO9001:2008
Model Number: MFL85N-48

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US$1-100
Packaging Details: Industrial Neutral Packing
Delivery Time: 10 days
Payment Terms: T/T,Paypal,Western Union,Escrow
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Standard Or Nonstandard: Standard Style: Mechanical Seal
Material: Metal


MFL85N-48 Burgmann Mechanical Seals (48x61.9x45mm) |MFL85N Series Metal bellows Seals for Pumps (Shaft Size:48mm)
Series Burgmann Mechanical Seals MFL85N
Model Number MFL85N-48
Shaft Size 48mm
Introduction
Single seal
Balanced
Independent
of direction of rotation
Metal bellows

Mechanical seals in the MFL series have a universal field of application. They are designed for extreme ranges of temperature and for high-viscosity media. There is no dynamic O-ring and therefore a bellows sealwill never hang-up.
Application
Date
OPERATING LIMITS
Temperature: -40°C~+220°C
Pressure: ≤1MPa
Speed: ≤15m/s
Materials
MFL85N Metal Bellow Mechanical Seal Material:
Stationary Ring: Carbon/SIC/TC
Rotary Ring: SIC/TC
Secondary Seal: Carbon
Bellows: AM350/Inconel718
Metal Parts: SS304/8SS316

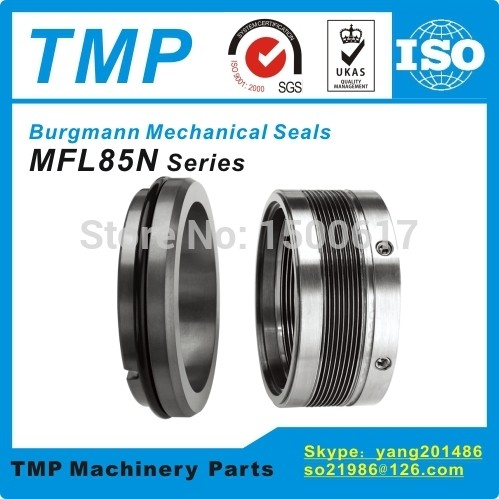

MFL85N Burgmann Mechanical SealsMFL85N Burgmann Mechanical Seals
