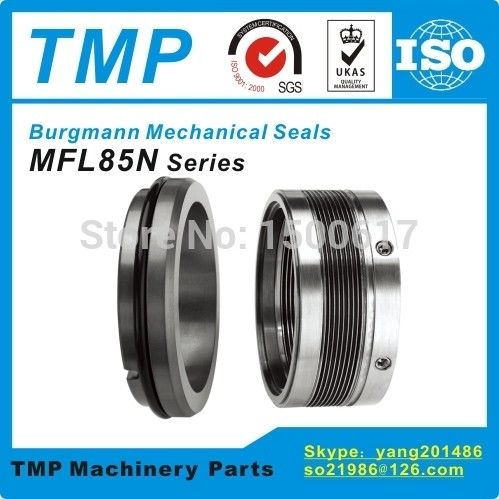

MFL85N-25 Burgmann Mechanical Seals (25x39.6x40mm) |MFL85N Series Metal bellows Seals
Product Details:
| Place of Origin: |
CHINA |
| Brand Name: |
TLANMP |
| Certification: |
ISO9001:2008 |
| Model Number: |
MFL85N-25 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
US$1-100 |
| Packaging Details: |
Industrial Neutral Packing |
| Delivery Time: |
10 days |
| Payment Terms: |
T/T,Paypal,Western Union,Escrow |
| Supply Ability: |
1000 pcs/month |
Contact Now
Detailed Product Description
| Standard Or Nonstandard: |
Standard |
Style: |
Mechanical Seal |
| Material: |
Metal |
|
MFL85N-25 Burgmann Mechanical Seals (25x39.6x40mm) |MFL85N Series Metal bellows Seals for Pumps (Shaft Size:25mm) |
|
Series |
Burgmann Mechanical Seals MFL85N |
|
Model Number |
MFL85N-25 |
|
Shaft Size |
25mm |
|
Introduction |
Single seal
Balanced
Independent
of direction of rotation
Metal bellows
Mechanical seals in the MFL series have a universal field of application. They are designed for extreme ranges of temperature and for high-viscosity media. There is no dynamic O-ring and therefore a bellows sealwill never hang-up.
|
Application
Date |
OPERATING LIMITS
Temperature: -40°C~+220°C
Pressure: ≤1MPa
Speed: ≤15m/s
|
|
Materials |
MFL85N Metal Bellow Mechanical Seal Material:
Stationary Ring: Carbon/SIC/TC
Rotary Ring: SIC/TC
Secondary Seal: Carbon
Bellows: AM350/Inconel718
Metal Parts: SS304/8SS316
|
|
