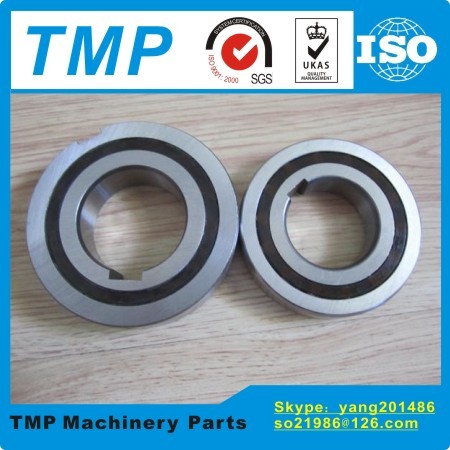

CSK6004 One Way Clutches Sprag Type (20x42x12mm) One Way Bearings Freewheel Type Backstop Clutch

CSK6004 One Way Clutches Sprag Type (20x42x12mm) One Way Bearings Freewheel Type Backstop Clutch

CSK6004 One Way Clutches Sprag Type (20x42x12mm) One Way Bearings  Freewheel Type Backstop Clutch

Product Details:

Place of Origin: CHINA
Brand Name: TLANMP
Certification: ISO9001:2008
Model Number: CSK6004

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1-1000
Packaging Details: Industrial Neutral Packing
Delivery Time: 10 days
Payment Terms: PAYPAL . T/T , WU , AliPAY
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
High Light:

Sprag Clutch

,

One Way Clutch

,

One Way Bearing

CSK6004 One Way Clutches Sprag Type (20x42x12mm) One Way Bearings Freewheel Type Backstop Clutch
A . One Way Clutches Sprag Type Parameters
Brand-TMP
Model number-CSK6004
Inner ring(mm)-20
Outer ring(mm)-42
Width(mm)-12
Weight(Kg)-0.03
Drag torque(Nm)--
Materials-GCR15
Series-CSK
Lubrication type-Grease/oil
Clutch type-Sprag
Precision-P0
Structure-Type CSK is a sprag type freewheel integrated into a 62 series ball bearing (except sizes 8 and 40).
B . CSK6004 One Way Clutches Sprag Type Specification Sheet
Model
Number
Size(mm)Corresponding bearingDrag torqueSpeedsBearing Load
Rating(KN)
Weight
(kg)
Friction
TR
(Ncm)
dDLTKN1
(Nm)
n
(r/min)
dynstat
CSK60042042126004----0.03-
C . CSK Series One Way Clutches Sprag Type Details

Product

Features

One Way Clutches Sprag Type mainly used as Backstop clutches(Most suitable as

backstops, and mostly the contact-free versions);
Backstop clutches:The freewheel allows rotation in one direction only. It overruns

continuously during operation. The freewheel prevents reverse rotation if the drive is disconnected.

Series

Introduction

Type CSK is a sprag type freewheel integrated into a 62 series ball bearing

(except sizes 8 and 40). It is bearing supported, delivered grease lubricated and

protected against dust of more than 0,3 mm. The use of additional "nylos" type seals is

recommended especially when the working temperature exceeds 50°C. Oil bath lubrication

is also possible.
All the CSK versions are equipped with "form chromed" sprags. This process increases

several times the overrunning life time. Torque transmission is ensured by a press fit

assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance.

The initial bearing radial clearance is set at C5, and is reduced if using the press fit as specified.
Please contact us when either the ambient or the operating temperature is not within the range +5°C

Series

Model No.

CSK8(CSK8P/CSK8PP) CSK12(BB12/ZZ6201/OW6201/CSK12P/CSK12PP)

CSK15(BB15/ZZ6202/OW6202/CSK15P/CSK15PP)

CSK17(BB17/ZZ6203/KK17/OW6203/CSK17P/CSK17PP)

CSK20(BB20/ZZ6204/KK20/OW6204/CSK20P/CSK20PP)

CSK25(BB25/ZZ6205/KK25/OW6205/CSK25P/CSK25PP)

CSK30(BB30/ZZ6206/KK30/OW6206/CSK30P/CSK30PP)

CSK35(BB35/ZZ6207/KK35/OW6207/CSK35P/CSK35PP)

CSK40(BB40/CSK40P/CSK40PP) CSK8-2RS CSK12-2RS CSK15-2RS/BB15-2GD

CSK17-2RS/BB17-2GD CSK20-2RS/BB20-2GD CSK25-2RS/BB25-2GD

CSK30-2RS/BB30-2GD CSK35-2RS/BB35-2GD CSK40-2RS/BB40-2GD

ApplicationsReducers , Flender Gearbox ,SEW Gearbox;
Overrunning clutch:for multiple-machine drives or to separate the inertia of masses of a driven machine from the driving
machine after it has been switched off.
Indexing clutch:which turns a shaft step by step, thus achieving indexed material feed or a variable speed.
Backstop clutch:to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake.
