Material: | GCr15 Bearings Steel | Application: | Robotic Arms, Machine Tool Turntable |
---|---|---|---|
Standard: | THK/INA/IKO |

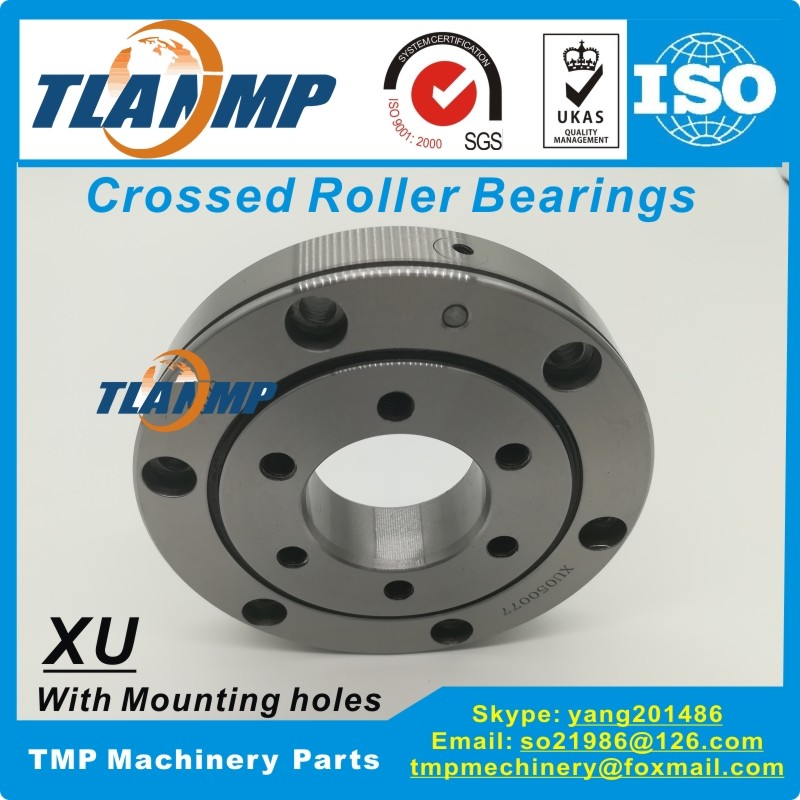

XU060111 Crossed Roller Bearings (76.2x145.79x15.87mm) Machine Tool Bearing TMP Band High precision Robotic Bearings |
|||||||||||||
A . Crossed Roller Bearings Parameters | |||||||||||||
Brand- | TLANMP | ||||||||||||
Model number- | XU060111 | ||||||||||||
Inner ring(mm)- | 76.2 | ||||||||||||
Outer ring(mm)- | 145.79 | ||||||||||||
Width(mm)- | 15.87 | ||||||||||||
Weight(Kg)- | 1.2 | ||||||||||||
Materials- | GCR15/GCR15SiMn | ||||||||||||
Precision grade- | P5/P4/P2 | ||||||||||||
Lubrication type- | Grease lubrication | ||||||||||||
Rotating part- | Inner ring/Outer ring | ||||||||||||
Load direction- | Multi-load | ||||||||||||
Structure- | Integrated Inner/Outer Ring | ||||||||||||
B . XU060111 Crossed Roller Bearings Specification Sheet | |||||||||||||
Model Number |
Main dimensions | Fixing Hole(Outer ing) | Fixing Hole(Inner ing) | Basic load rating (Axial) |
Basic load rating (Radial) |
Weight Kg |
|||||||
Inner ring d(mm) |
Outer ring D(mm) |
Roller pitch circle dp(mm) |
Width B(mm) |
Pitch of holes φLa |
Number na |
Pitch of holes φLi |
Number ni |
Ca KN | Coa KN | Cr KN | Cor KN | ||
XU060111 | 76.2 | 145.79 | 111 | 15.87 | 133.1 | 8-φ6.9 | 88.9 | 8-φ6.9 | 36 | 44.5 | 22.8 | 21.5 | 1.2 |
XU series Cross Roller bearings:
Identifi -cation number | Main dimensions | Basic load rating (axial) | Basic load rating(radial) | weight | |||||||||
inner ring d (mm) |
outer ring D (mm) |
Roller pitch circle diameter dp (mm) |
width B (mm) |
φLa |
na |
φLi | ni |
Ca KN |
C0a KN |
Cr KN |
Cor KN |
Kg | |
XU050077 | 40 | 112 | 77 | 22 | 97 | 6-φ6.6 | 56 | 6-M8 | 22.4 | 29 | 14.3 | 14.2 | 1.4 |
XU060094 | 57 | 140 | 94 | 26 | 120 | 6-φ9 | 70 | 6-M8 | 32.5 | 37.5 | 20.7 | 18.4 | 2.4 |
XU060111 | 76.2 | 145.79 | 111 | 15.87 | 133.1 | 8-φ6.9 | 88.9 | 8-φ6.9 | 36 | 44.5 | 22.8 | 21.5 | 1.2 |
XU080120 | 69 | 170 | 120 | 30 | 148 | 6-φ9 | 90 | 6-M8 | 56 | 53 | 35.5 | 26 | 4 |
XU080149 | 101.6 | 196.85 | 149.6 | 22.22 | 177.8 | 16-φ6.9 | 115.8 | 16-φ6.9 | 63 | 66 | 40 | 32.5 | 3.6 |
XU120179 | 124.5 | 234 | 179 | 35 | 214 | 12-φ11 | 144.5 | 12-φ11 | 118 | 179 | 75 | 88 | 7 |
XU120222 | 140 | 300 | 222 | 36 | 270 | 12-M16 | 170 | 12-φ18 | 133 | 275 | 85 | 131 | 12 |
XU160260 | 191 | 329 | 260 | 46 | 305 | 20-φ14 | 215 | 20-φ14 | 212 | 350 | 135 | 173 | 16 |
XU080264 | 215.9 | 311 | 264 | 25.4 | 295.3 | 12-φ8.7 | 231.8 | 12-φ8.7 | 85 | 117 | 54 | 57 | 6.9 |
XU160405 | 336 | 474 | 405 | 46 | 450 | 30-φ14 | 360 | 30-φ14 | 270 | 550 | 172 | 270 | 25 |
XU080430 | 380 | 480 | 430 | 26 | 462 | 20-φ9 | 398 | 20-M10 | 110 | 280 | 70 | 138 | 12 |
XU300515 | 384 | 646 | 515 | 86 | 598 | 18-φ26 | 432 | 18-φ26 | 720 | 1370 | 455 | 670 | 115 |
C . XU type Crossed Roller Bearings Details | |||||||||||||
Product Features |
TMP Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads. |
||||||||||||
Series Introduction |
XU special type is a bearing with integrated inner- and outer ring. It is being used in cases where high rotational accuracy of both the inner- and outer rings is required. |
||||||||||||
Series Model No. |
XU050077,XU060094,XU060111,XU080120,XU080149,XU120179,XU120222,XU160260,XU080264, XU160405,XU080430,XU300515 |
||||||||||||
Applications | Product Application •Industrial Robotic arm,Reducer drive •precision Turntable,NC rotary table •Rotation part of Machine tools •Inspection instrument,Medical equipment • Aviation equipment,Military radar etc |
