XSU080318 Crossed Roller Bearings (280x355x25.4mm) TLANMP Precision Robotic Bearings Made in China INA Bearing Replace

Product Details:

Place of Origin:	CHINA
Brand Name:	TLANMP
Certification:	ISO9001:2008
Model Number:	XSU080318

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	1-1000
Packaging Details:	Industrial Neutral Packing
Delivery Time:	10 days
Payment Terms:	PAYPAL . T/T , AliPAY, Western Union
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Material:	GCr15 Bearings Steel	Application:	Robotic Arms, Machine Tool Turntable
Standard:	THK/INA/IKO

XSU080318 Crossed Roller Bearings (280x355x25.4mm) ...

US $566.50 / piece

Product Description

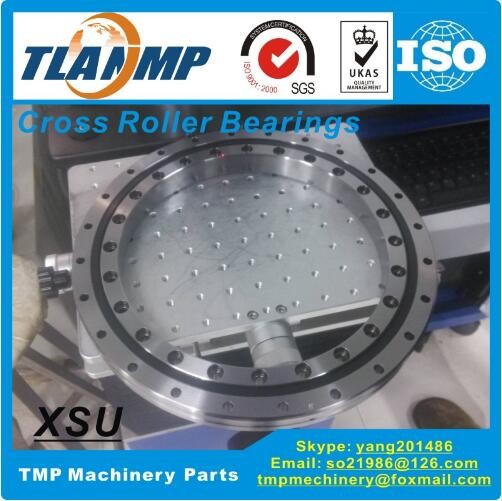

XSU080318 Crossed Roller Bearings (280x355x25.4mm) Precision Robotic Bearings Made in China

A . Crossed Roller Bearings Parameters

Brand-

TLANMP

Model number-

XSU080318

Inner ring(mm)-

280

Outer ring(mm)-

355

Width(mm)-

25.4

Weight(Kg)-

6.3

Materials-

GCR15/GCR15SiMn

Precision grade-

P5/P4/P2

Lubrication type-

Grease lubrication

Rotating part-

Inner ring/Outer ring

Load direction-

Multi-load

Structure-

Integrated Inner/Outer Ring

B . XSU080318 Crossed Roller Bearings Specification Sheet

Model
Number

Main dimensions

Fixing Hole
(Outer ing)

Fixing Hole
(Inner ing)

Basic load
rating
(Axial)

Basic load
rating
(Radial)

Weight
Kg

Inner
ring
d(mm)

Outer
ring
D(mm)

Roller pitch
circle
dp(mm)

Width
B(mm)

Pitch of
holes φLa

Number
na

Pitch of
holes φLi

Number
ni

Ca KN

Coa KN

Cr KN

Cor KN

XSU080318

280

355

318

25.4

465

295

465

185

6.3

C . XSU type Crossed Roller Bearings Details

Product

Features

TMP Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer

rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove

through the separate spacers in the deep groove rolling surface. This special design allows just one

bearing to carry loads in all directions including radial, axial and moment loads.

Series

Introduction

XSU special type is a bearing with integrated inner- and outer ring. It is being used in cases where high

rotational accuracy of both the inner- and outer rings is required.

Series

Model No.

XSU080168,XSU080188,XSU080218,XSU080258,XSU080318,XSU080398,XSU140414,

XSU140544,XSU140644,XSU140744,XSU140844,XSU140944

Applications

Product Application
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc
