Place of Origin: | CHINA |
Brand Name: | TLANMP |
Certification: | ISO9001:2008 |
Model Number: | RB4010 CRB4010/CRBC4010 NRXT4010 |
Minimum Order Quantity: | 1 |
---|---|
Price: | 1-1000 |
Packaging Details: | Industrial Neutral Packing |
Delivery Time: | 10 days |
Payment Terms: | PAYPAL . T/T , AliPAY, Western Union |
Supply Ability: | 1000 pcs/month |
Material: | GCr15 Bearings Steel | Application: | Robotic Arms, Machine Tool Turntable |
---|---|---|---|
Standard: | THK/INA/IKO |

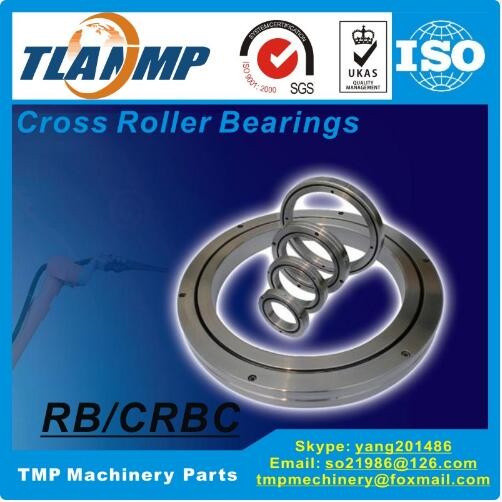

RB4010UUCC0 P5 Crossed Roller Bearings (40x65x10mm) Machine Tool Bearing - High rigidity Robotic Bearings TMP produce |
|||||||||||
A . Crossed Roller Bearings Parameters | |||||||||||
Brand- | TLANMP | ||||||||||
Model number- | RB4010UUCC0 | ||||||||||
Inner ring(mm)- | 40 | ||||||||||
Outer ring(mm)- | 65 | ||||||||||
Width(mm)- | 10 | ||||||||||
Weight(Kg)- | 0.16 | ||||||||||
Materials- | GCR15/GCR15SiMn | ||||||||||
Precision grade- | P5/P4/P2 | ||||||||||
Lubrication type- | Grease lubrication | ||||||||||
Rotating part- | Inner Ring Rotation | ||||||||||
Load direction- | Multi-load | ||||||||||
Structure- | Separable Outer Ring | ||||||||||
B . RB4010 Crossed Roller Bearings Specification Sheet | |||||||||||
Model Number |
Main dimensions | Mounting dimensions |
Basic load rating (radial) |
weight | |||||||
Inner ring d (mm) |
Outer ring D(mm) |
Roller pitch circle dp(mm) |
Width (mm) |
Greasing hole φ |
Chamfer r(min) |
ds | Dh | C kN | C0 kN | Kg | |
RB4010 | 40 | 65 | 51.5 | 10 | 1 | 0.6 | 47.5 | 57.5 | 8.33 | 10.6 | 0.16 |
C . RB type Crossed Roller Bearings Details | |||||||||||
Product Features |
TMP Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads. |
||||||||||
Series Introduction |
RB standard type is a bearing with thinnest possible inner and outer rings because the outer ring is split while the inner ring is integrated into the main body. It is being used in cases where a high rotational accuracy of the inner ring is required. |
||||||||||
Series Model No. |
RB4010UUCC0 RB4510UUCC0 RB5013UUCC0 RB6013UUCC0 RB7013UUCC0 RB8016UUCC0 RB9016UUCC0 RB10016UUCC0 RB10020UUCC0 RB11012UUCC0 RB11015UUCC0 RB11020UUCC0 RB12016UUCC0 RB12025UUCC0 RB13015UUCC0 RB13025UUCC0 RB14016UUCC0 RB14025UUCC0 RB15013UUCC0 RB15025UUCC0 RB15030UUCC0 RB16025UUCC0 RB17020UUCC0 RB18025UUCC0 RB19025UUCC0 RB20025UUCC0 RB20030UUCC0 RB20035UUCC0 RB22025UUCC0 RB24025UUCC0 RB25025UUCC0 RB25030UUCC0 RB25040UUCC0 RB30025UUCC0 RB30035UUCC0 RB30040UUCC0 RB35020UUCC0 RB40035UUCC0 RB40040UUCC0 RB45025UUCC0 RB50025UUCC0 RB50040UUCC0 RB50050UUCC0 RB60040UUCC0 RB70045UUCC0 RB80070UUCC0 RB90070UUCC0 RB1000110UUCC0 RB1250110
CRB4010 CRB4510 CRB5013 CRB6013 RB7013 CRB8016 CRB9016 CRB10016 CRB10020 CRB11012 CRB11015
NRXT4010,NRXT5013,NRXT6013,NRXT7013,NRXT8016,NRXT9016,NRXT10020,NRXT11020,NRXT12025,NRXT13025,NRXT14025,NRXT15025,NRXT15030,NRXT20030,NRXT25025,NRXT25030,NRXT30025,NRXT30035,NRXT30040,NRXT40035,NRXT40040,NRXT50040,NRXT50050,NRXT60040 |
||||||||||
Applications | Product Application •Industrial Robotic arm,Reducer drive •precision Turntable,NC rotary table •Rotation part of Machine tools •Inspection instrument,Medical equipment • Aviation equipment,Military radar etc |
