YRT650 Rotary Table Bearings (650x870x122mm) Machine Tool Bearing Repalce- Axial Radial Turntable Bearing Made in China

Product Details:

Place of Origin:	CHINA
Brand Name:	TLANMP
Certification:	ISO9001:2008
Model Number:	YRT650

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	1-1000
Packaging Details:	Industrial Neutral Packing
Delivery Time:	10 days
Payment Terms:	PAYPAL . T/T , AliPAY, Western Union
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Material:	GCr15 Bearings Steel	Application:	Machine Tool Turntable / Rotary Table
Standard:	THK/INA/IKO

YRT650 Rotary Table Bearings (650x870x122mm) Machine...

US $8,791.75 / Set

Product Description

YRT650 Rotary Table Bearings (650x870x122mm) Machine Tool Bearing

-slewing bearing Made in China

A . Rotary Table Bearings Parameters

Brand-

TLANMP

Model number-

YRT650

Inner ring(mm)-

650

Outer ring(mm)-

870

Width(mm)-

Weight(Kg)-

170

Materials-

GCR15SiMn

Precision grade-

Lubrication type-

Grease lubrication

Rotating part-

Inner ring/Outer ring

Load direction-

Multi-load

Structure-

Integrated Inner/Outer Ring

B . YRT650 Rotary Table Bearings Specification Sheet

Model
Number

Main dimensions (mm)

Fixing Hole
(Inner ing)

Fixing Hole
(Outer ing)

Retaining
screws

Number of
pitches
x Angle

Quantity

YRT650

650

870

122

800

680

830

48×7.5°

Screw tightening torque(Nm)	Basic load rating (Axial)		Basic load rating (radial)		Limiting speed (Grease) r/m	Bearing frictional torque(Nm)	Weight (Kg)	Model Number
	Ca KN	Coa KN	Cr KN	Cor KN
116	1040	8000	490	1800	65	200	170	YRT650

C . YRT type Rotary Table Bearings Details

Product Features

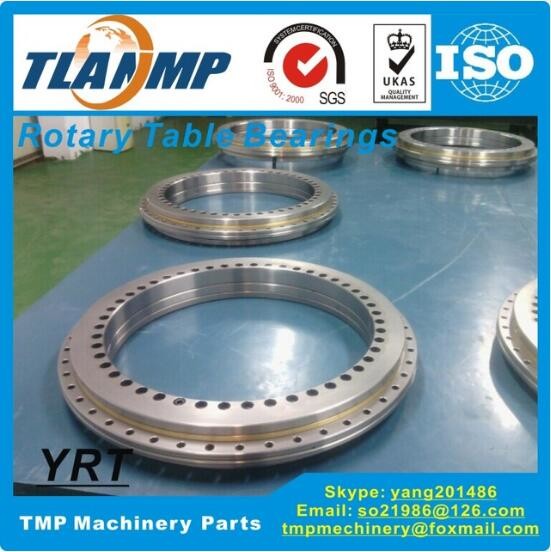

YRT bearings (rotary table bearings) are axial and radial combined cylindrical roller bearings, including

two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and

radial p reload, For the convenience of transportation and fixing, two or three symmetrical screws are

fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing

accuracy.

Series Model No.

YRT50 YRT80 YRT100 YRT120 YRT150 YRT180 YRT200 YRT260 YRT325 YRT395

YRT460 YRT580 YRT650 YRT850 YRT950 YRT1030 YRT1200

Applications

Product Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc

Company Information

TLANMP (TMP machinery Parts Co.,Ltd) is a professional manufacturer of Mechanical Seals and high precision bearings ,The main products are Mechanical Seals, Water/Chemical/Automobile Pumps Seals, Thin Section Bearings, Crossed roller bearings, Angular Contact Ball Bearings, One Way Clutch Bearings etc,Our products are used for Water Pumps,Chemical Pumps, Robotics,CNC Machine Tools,You can find your need in our store, all the products here are International general parts ,Contact with us by Skype / Email / Whatsapp when you need help,thanks :) .
