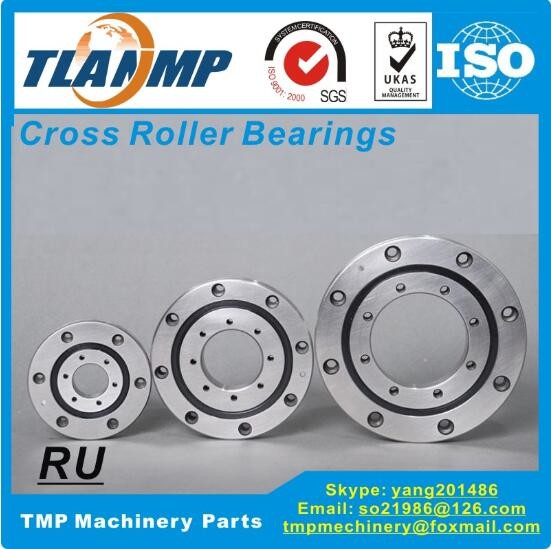

RU178 RU178X RU178G UUCC0/P5 Crossed Roller Bearings (115x240x28mm) Robotic Bearing TLANMP Robotic arm use

Product Details:

Place of Origin:	CHINA
Brand Name:	TLANMP
Certification:	ISO9001:2008
Model Number:	RU178 RU178X RU178G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	1-1000
Packaging Details:	Industrial Neutral Packing
Delivery Time:	10 days
Payment Terms:	PAYPAL . T/T , AliPAY, Western Union
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Material:	GCr15 Bearings Steel	Application:	Robotic Arms, Machine Tool Turntable
Standard:	THK/INA/IKO

RU178 RU178X RU178G UUCC0/P5 Crossed Roller Bearings...

US $425.10 / piece

Product Description

Please choose from the 3 type as you want and Remark in your order (This bearing have 3 type of innner holes ):

Type 1- RU178X: tapped hole on the inner ring (through hole);

Type 2- RU178G: counterbore holes of the inner and outer rings face opposite directions;

Type 3- RU178 :counterbore holes of the inner and outer rings face the same directions;

RU178UUCC0 P5 X/G Crossed Roller Bearings (115x240x28mm) Robotic Bearing -Thin section Robotic arm use
A . Crossed Roller Bearings Parameters
Brand-	TLANMP
Model number-	RU178UUCC0
Inner ring(mm)-	115
Outer ring(mm)-	240
Width(mm)-	28
Weight(Kg)-	6.8
Materials-	GCR15/GCR15SiMn
Precision grade-	P5/P4/P2
Lubrication type-	Grease lubrication
Rotating part-	Inner ring/Outer ring
Load direction-	Multi-load
Structure-	Integrated Inner/Outer Ring

B . RU178 Crossed Roller Bearings Specification Sheet
Model Number	Main dimensions						Mounting dimensions		Basic load rating (radial)		weight
	Inner ring d (mm)	Outer ring D(mm)	Roller pitch circle dp(mm)	Width (mm)	Greasing hole φ	Chamfer r(min)	ds	Dh	C kN	C0 kN	Kg
RU178	115	240	178	28	3.1	1.5	161	195	80.3	135	6.8

C . RU type Crossed Roller Bearings Details
Product Features	TMP Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.
Series Introduction	RU special type is a bearing with integrated inner- and outer ring. It is being used in cases where high rotational accuracy of both the inner- and outer rings is required.
Series Model No.	RU66(CRBF3515),RU85(CRBF5515),RU124G(CRBF8022),RU148G,RU178G,RU228,RU297,RU445, RU228X,RU297X,RU445X,RU228G,RU297G,RU445G
Applications	Product Application •Industrial Robotic arm,Reducer drive •precision Turntable,NC rotary table •Rotation part of Machine tools •Inspection instrument,Medical equipment • Aviation equipment,Military radar etc
