BIA-14mm Burgmann Mechanical Seals Rubber Below for Pump (Material:SiC/ViTon) TLANMP Brand

BIA-14mm Burgmann Mechanical Seals Rubber Below for Pump (Material:SiC/ViTon) TLANMP Brand

BIA-14mm Burgmann Mechanical Seals Rubber Below for Pump (Material:SiC/ViTon) TLANMP Brand

Product Details:

Place of Origin: China
Brand Name: TLANMP
Certification: ISO9001:2008
Model Number: BIA-14mm

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1-1000
Packaging Details: Industrial Neutral Packing
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Standard Or Nonstandard: Standard Style: Mechanical Seal
Material: Rubber

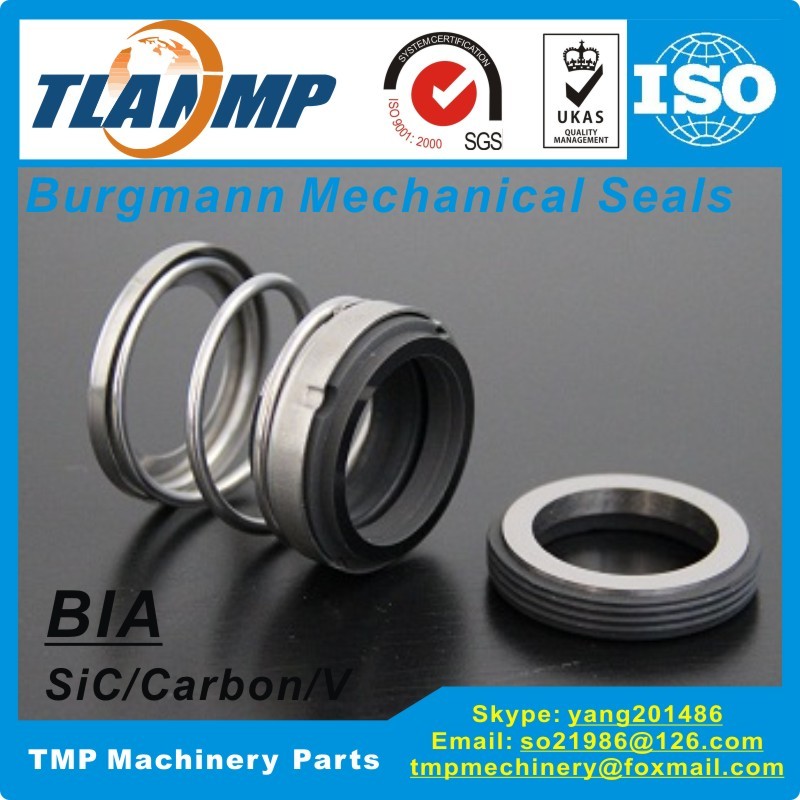

BIA-14 Burgmann Mechanical Seals  (14x30x23.7mm) BIA Series Rubber Below-Shaft Size 14mm  for Boat (SiC/ViTon)
TypeBurgmann Mechanical Seals
SeriesBIA
Model NumberBIA-14
Shaft Size(mm)14
Outer Size(mm)30
Length with seat(mm)23.7
Introduction

BIA series is more commonly used in mechanical seals, rubber bellows transmit torque, the structure
is simple, compact, short axial dimension, often used in the oil, water and other weak corrosive
medium and two compensation ring may form a double seal.

Application
Date
Specification 18 ~ 90 mm
Pressure ≤ 1.0 Mpa
Temperature -20 ~ 120 °C
Linear speed ≤ 10 m / s
Axial movement ± 1.0 mm
MaterialsSealing face Carbon/Ceramic/SIC/TC
Secondary seal NBR,EPDM,Viton
Metal components stainless steel

BIA-14mm Burgmann Mechanical Seals Rubber Below for Pump (Material:SiC/ViTon) TLANMP BrandBIA mechanical seals

Model Numberd1
(mm)
d6
(mm)
d7
(mm)
d3
(mm)
l1k
(mm)
l
(mm)
lo
(mm)
l28
(mm)
l6
(mm)
l5
(mm)
BIA-141422.4302723.718.79.754.52.5
BIA-1616233228.526211254.52.5
BIA-181825.53530.53022.5137.562.5
BIA-2020263531.5292111.586.53
BIA-2222313736.5292111.586.53
BIA-242434393933.525.51586.53
BIA-252534403933.525.51586.53
BIA-282836.5434233.525.51586.53
BIA-303038.5454434.525.51597.53
BIA-323240484642.533.52197.54.5
BIA-333340.5484742.533.52197.54.5
BIA-353542.5504942.533.52197.54.5
BIA-383846.5565442.533.52197.54.5
BIA-404048585642.533.52197.54.5
BIA-43435161594636.5249.585.5
BIA-454552.5636147.538249.585.5
BIA-484855.5666447.538249.585.5
BIA-505057706647.538249.585.5
BIA-535360736950.541269.586
BIA-555562757150.541269.586
BIA-585868787851.542269.586
BIA-606070808051.542269.586
BIA-636373838351.542269.586
BIA-656575858551.542269.586
BIA-686878908856452811116.5
BIA-707080929056452811116.5
BIA-757585979657452812128
BIA-80809010410467553912128
BIA-85859510910876.264.24812128
BIA-909010011411376.264.25012128
BIA-100100108.5133.3512381624619128
