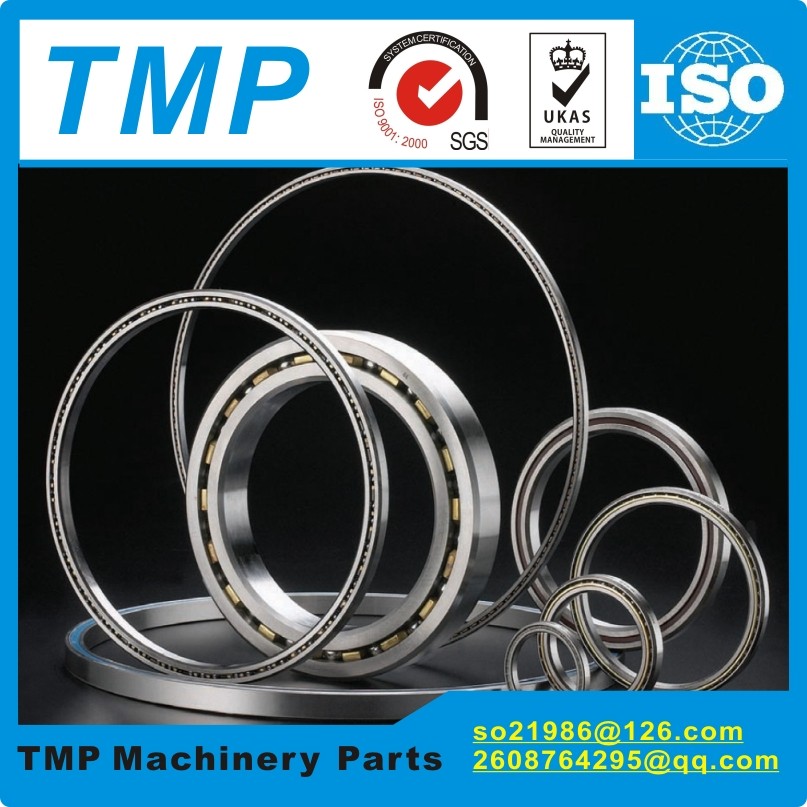

KF180AR0/KF180CP0/KF180XP0 Thin section ball bearings (18x19.5x0.75 inch) Kaydon

KF180AR0/KF180CP0/KF180XP0 Thin section ball bearings (18x19.5x0.75 inch) Kaydon

KF180AR0/KF180CP0/KF180XP0 Thin section ball bearings (18x19.5x0.75 inch) Kaydon

Product Details:

Place of Origin: China
Brand Name: TMP
Certification: ISO9001:2008
Model Number: KF180

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US$1-100
Packaging Details: Industrial Neutral Packing
Delivery Time: 10 days
Payment Terms: T/T,Paypal,Western Union,Escrow
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Angular Contact Ball Type: KF180AR0 Deep Groove Ball Type: KF180CP0
Four-Point Contact Ball Type: KF180XP0


KF180AR0/KF180CP0/KF180XP0 Thin-section bearings (18x19.5x0.75 in)(457.2x495.3x19.05 mm) TMP Band bearing sizes
 A . Reail-silm Thin-section bearings Parameters
Brand- TMP
Structure- Angular Contact Ball/Deep Groove Ball/Four-Point Contact Ball
Model number- KF180AR0/KF180CP0/KF180XP0
Inner ring(in)- 18
Outer ring(in)- 19.5
Width(in)- 0.75
Weight(lb)- 7.67
Materials- Chrome steel/GCR15/Stainless steel
Precision grade- P0
Lubrication type- Oil
Material(Ball)- Steel ball/Ceramic ball
Number of Row- Single rows
Section Type- Thin section
Quality- High speed, Low noise and Long life

 B . KF180AR0/KF180CP0/KF180XP0 Reail-silm Thin-section bearings Specification Sheet
Model
Number
Size(in) Land Diameters (in) Capacities in Pounds1 Weight
in
Pounds
Limiting
Speeds
(RPM)
Torque
Max. No
Load
(in-oz)
Bore Outside
Diameter
Land
Dia. L1
Land
Dia. L2
C'bore
Dia. L3
Radial Thrust Moment
Static Dyn. Static Dyn. Static Dyn.
KF180AR0 18 19.5 18.555 18.945 19.096 25410 8103 73360 21210 - - 7.67 - -
KF180CP0 18 19.5 18.555 18.945 - 21160 7557 - - - - 7.9 - -
KF180XP0 18 19.5 18.555 18.945 - 25410 8103 73360 21210 0 0 7.67 - -
Thin section bearingThin section ball bearing

 C . Type A-KF/Type C-KF/Type X-KF series Reail-silm Thin-section bearings Details

Product

Features

To support various load scenarios,Reail-SlIM Thin section ball bearings are available in three basic types: radial contact

(type C), angular contact (type A), and fourpoint contact (type X) and in a variety of sizes ,or series (e.g., KA, KB, KC,

etc.). Reail-SlIM Thin section ball bearings are available with various separator options to space the rolling elements

uniformly and prevent contact between them.

Applications

Applications in Robotics, inspection equipment, satellites, cameras… anywhere precise positioning and lightweight

 designs are critical.

 C . Type A-KF/Type C-KF/Type X-KF series Reail-silm Thin-section bearings 3 types
Type A-KF

Open REALI-SLIM Bearing Selections Type A Angular Contact, Snapover assembly permits use of a onepiece circular pocket ring

separator and greater ball complement. These bearings will accept radial load and single direction thrust load and are

normally used in conjunction with another bearing of similar construction. Type A bearings require the application of thrust

to establish contact angle.

Type C-KF

A Conrad assembled bearing designed primarily for application of radial load—deep ball grooves also permit application of

thrust load in
either direction – often used in conjunction with another bearing.

Type X-KF

Standard bearing lines are most often designed to handle either radial or axial load conditions. The unique feature about

 the  REALI-SLIM Type X four-point contact bearing line is that the gothic arch geometry of the inner and outer races

enables a single bearing to carry three types of
loading (radial, axial and moment) simultaneously. This makes it the bearing of choice for many applicationssince a

single fourpoint contact bearing can often replace two bearings, providing a simplified design.
Type X bearings may also be furnished with an internal diametral preload for those applications requiring greater

stiffness or zero free play. This is accomplished by using balls that are larger than the space provided in the

raceways. The balls and raceways, therefore, have some elastic deformation in the absence of an external load

 C . Type A-KF/Type C-KF/Type X-KF series Reail-silm Thin-section bearings Model Number
Type A-KF

KF040AR0,KF042AR0,KF045AR0,KF047AR0,KF050AR0,KF055AR0,KF060AR0,KF065AR0,KF070AR0,KF075AR0,

KF080AR0,KF090AR0,KF100AR0,KF110AR0,KF120AR0,KF140AR0,KF160AR0,KF180AR0,KF200AR0,KF250AR0,

KF300AR0,KF350AR0,KF400AR0

Type C-KF

KF040CP0.KF042CP0.KF045CP0.KF047CP0.KF050CP0.KF055CP0.KF060CP0.KF065CP0.KF070CP0.KF075CP0.

KF080CP0.KF090CP0.KF100CP0.KF110CP0.KF120CP0.KF140CP0.KF160CP0.KF180CP0.KF200CP0.KF250CP0.

KF300CP0.KF350CP0.KF400CP0

Type X-KF

KF040XP0,KF042XP0,KF045XP0,KF047XP0,KF050XP0,KF055XP0,KF060XP0,KF065XP0,KF070XP0,KF075XP0,

KF080XP0,KF090XP0,KF100XP0,KF110XP0,KF120XP0,KF140XP0,KF160XP0,KF180XP0,KF200XP0,KF250XP0,

KF300XP0,KF350XP0,KF400XP0
