MG13-30 Burgmann Mechanical Seals MG13 Series for Shaft Size 30mm Pumps (30x49x50mm) with G60 seat

MG13-30 Burgmann Mechanical Seals MG13 Series for Shaft Size 30mm Pumps (30x49x50mm) with G60 seat

MG13-30 Burgmann Mechanical Seals MG13 Series for Shaft Size 30mm Pumps (30x49x50mm) with G60 seat

Product Details:

Place of Origin:	CHINA
Brand Name:	TLANMP
Certification:	ISO 9001:2005
Model Number:	MG13-30

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1~$500
Packaging Details:	Industrial neutral packaging (Paper Box)
Delivery Time:	1-3 day after Payment
Payment Terms:	T/T,WU,Paypal,Alipay etc
Supply Ability:	1~1000 pieces per month
Minimum Order Quantity:	1

Contact Now

Detailed Product Description

High Light:

Burgmann mechanical seals

,

Mechanical seal

,

MG13 Seals

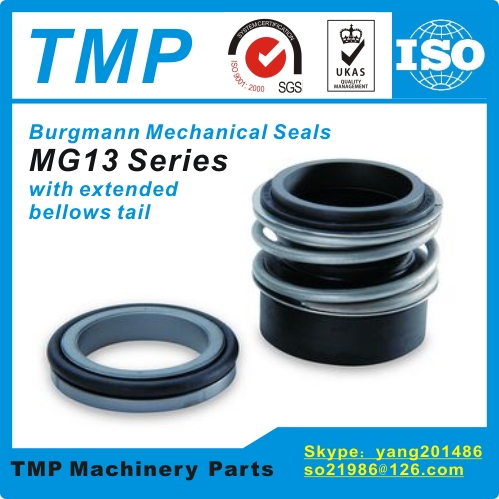

MG13-30 Burgmann Mechanical Seals MG13 Series for Shaft Size 30mm Pumps (30x49x50mm) Rubber Bellow Seals
Series	Burgmann Mechanical Seals MG13 Series
Model Number	MG13-30
Shaft Size	30mm
Introduction	MG13:Dimensions, items and designationssame as for MG1, butwith an extended bellows tailto achieve thefitting length I1Naccording to EN12756 in combination with seat G6 or G60.
Application Date	OPERATING LIMITS Temperature: -20°C~+120°C Pressure: ≤1.2MPa Speed: ≤10m/s Equivalent to: • Burgmann MG13 seal • Flowserve Pac-Seal 193 • Hecker HN 410NU • Roten L3N
Materials	• Stationary Ring(Ceramic/SiC/TC) • Rotary Ring(Carbon/SiC/TC) • Secondary Seal(NBR/EPDM/VITON) • Spring & Other Parts(SUS304/SUS316)

MG1 seal MG1 mechanical seal

Tag:

Burgmann mechanical seals,

MG13 Seals,

Mechanical seal
