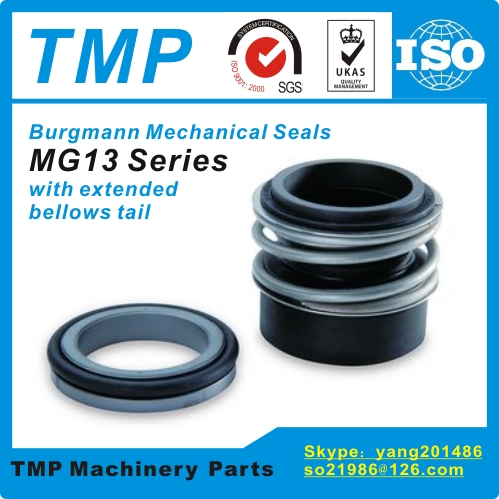

MG13-58 Burgmann Mechanical Seals MG13 Series for Shaft Size 58mm Pumps (58x85.5x70mm) Rubber Bellow Seals
Product Details:
| Place of Origin: |
CHINA |
| Brand Name: |
TLANMP |
| Certification: |
ISO 9001:2005 |
| Model Number: |
MG13-58 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
$1~$500 |
| Packaging Details: |
Industrial neutral packaging (Paper Box) |
| Delivery Time: |
1-3 day after Payment |
| Payment Terms: |
T/T,WU,Paypal,Alipay etc |
| Supply Ability: |
1~1000 pieces per month |
| Minimum Order Quantity: |
1 |
Contact Now
Detailed Product Description
| Highlight: |
Burgmann mechanical seals, Mechanical seal, MG13 Seals |
MG13-58 Burgmann Mechanical Seals MG13 Series for Shaft Size 58mm Pumps (58x85.5x70mm) Rubber Bellow Seals |
| Series | Burgmann Mechanical Seals MG13 Series |
| Model Number | MG13-58 |
| Shaft Size | 58mm |
| Introduction | MG13:Dimensions, items and designationssame as for MG1, butwith an extended bellows tailto achieve thefitting length I1Naccording to EN12756 in combination with seat G6 or G60. |
Application
Date | OPERATING LIMITS
Temperature: -20°C~+120°C
Pressure: ≤1.2MPa
Speed: ≤10m/s Equivalent to: • Burgmann MG13 seal • Flowserve Pac-Seal 193 • Hecker HN 410NU • Roten L3N |
| Materials | • Stationary Ring(Ceramic/SiC/TC)
• Rotary Ring(Carbon/SiC/TC)
• Secondary Seal(NBR/EPDM/FKM)
• Spring & Other Parts(SUS304/SUS316)
|
