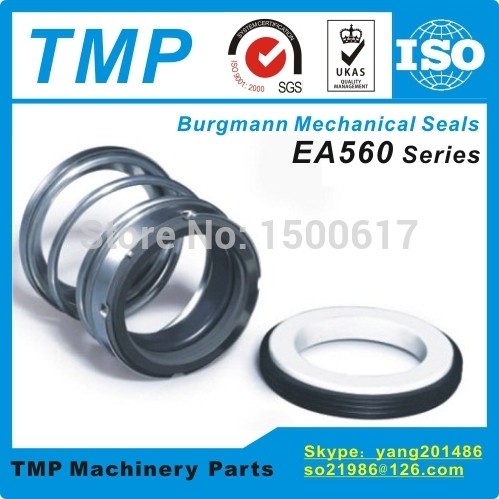

EA560-16 (Shaft Size:16mm) Eagle Burgmann Single Spring Elastomer Bellows Mechanical Seals

EA560-16 (Shaft Size:16mm) Eagle Burgmann Single Spring Elastomer Bellows Mechanical Seals

EA560-16 (Shaft Size:16mm) Eagle Burgmann Single Spring Elastomer Bellows Mechanical Seals

Product Details:

Place of Origin: China
Brand Name: TMP
Certification: ISO9001:2008
Model Number: 560A-16

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US$1-100
Packaging Details: Industrial Neutral Packing
Delivery Time: 10 days
Payment Terms: T/T,Paypal,Western Union,Escrow
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Standard Or Nonstandard: Standard Style: Mechanical Seal
Material: Silicone



EA560-16 (Shaft Size:16mm) Eagle Burgmann Single Spring Elastomer Bellows Mechanical Seals with O-Ring for Pumps (560A-16)
Series Burgmann Mechanical Seals EA560
Model Number 560A-16
Shaft Size 16 mm
Introduction
EA560 Industrial Elastomer Bellows Seals  Design Features:
Single seal
Loosely inserted seal face provides self-adjusting capability
In-house manufactured sliding parts

EA560 Industrial Elastomer Bellows Seals  Advantage:
The 560A is self-adjusting to shaft misalignments and deflections because of the loosely inserted seal face as well as the ability of the bellows to stretch and tighten. The length of the contact area of the bellows with the shaft is an optimum compromise between ease of assembly (less friction) and sufficient adhesive force for torque transmission. Additionally the seal fulfills very specific leakage requirements. Because the sliding parts are made in-house, a wide variety of special needs can be accommodated.
Application
Date
EA560 Industrial Elastomer Bellows Seals Operating Limits
Temperature: -30°C~+200°C
Pressure: ≤1MPa
Speed: ≤12m/s
 Mediums: Water, oil and weakly-corrosive mediums
Materials
EA560 Industrial Elastomer Bellows Seals  Material
Stationary Ring (Ceramic/SiC/TC)
Rotary Ring (Plastic Carbon/Carbon/SiC/TC)
Secondary Seal (NBR/EPDM/VITON)
Spring & Other Parts (SS304/SS316)

EA560 Eagle Burgmann sealEA560 Eagle Burgmann seal
