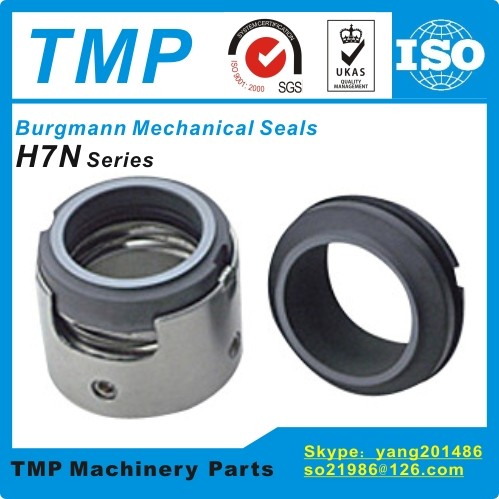

H7N-43 Burgmann Mechanical Seals (43x65x52.5mm) |H7N Series balanced Seals with O-ring

H7N-43 Burgmann Mechanical Seals (43x65x52.5mm) |H7N Series balanced Seals with O-ring

H7N-43 Burgmann Mechanical Seals (43x65x52.5mm) |H7N Series balanced Seals with O-ring

Product Details:

Place of Origin: CHINA
Brand Name: TLANMP
Certification: ISO 9001:2005
Model Number: H7N-43

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $1~$500
Packaging Details: Industrial neutral packaging (Paper Box)
Delivery Time: 1-3 day after Payment
Payment Terms: T/T,WU,Paypal,Alipay etc
Supply Ability: 1~1000 pieces per month
Contact Now
Detailed Product Description
Standard Or Nonstandard: Standard Style: Mechanical Seal
Material: Silicone

H7N-43 Burgmann Mechanical Seals (43x65x52.5mm) |H7N Series balanced Seals with O-ring for Pumps (Shaft Size:43mm)
Series Burgmann Mechanical Seals H7N
Model Number H7N-43
Shaft Size 43mm
Introduction
Single seal
/Balanced
/Independent of direction of rotation;

The H7N mechanical seal range is designed for universal application and the interchangeable parts concept is ideal for stock rationalisation. The seal faces are loosley inserted and can be easily exchanged, the thrust ring is retained by the drive lugs preventing the springs falling out. New: H7N with Super-Sinus spring.
Application
Date
OPERATING LIMITS
Temperature: -20°C~+220°C
Pressure: ≤2.5MPa
Speed: ≤20m/s
Materials
Material
• Stationary Ring(Carbon/SiC/TC)
• Rotary Ring(SiC/TC/Carbon)
• Secondary Seal(VITON/PTFE+VITON)
• Spring & Other Parts(SUS304/SUS316)

H7N Mechanical SealH7N Mechanical Seal
