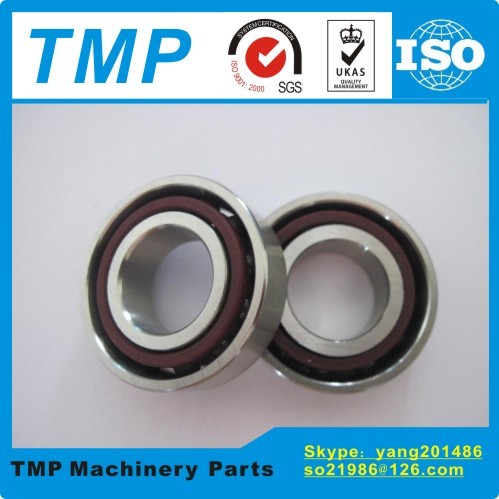

B7006C HQ1 P4 Ceramic Ball Bearings (30x55x13mm) Angular contact bearing TMP High Speed Germany Bearing replace

B7006C HQ1 P4 Ceramic Ball Bearings (30x55x13mm) Angular contact bearing TMP High Speed Germany Bearing replace

B7006C HQ1 P4 Ceramic Ball Bearings (30x55x13mm)   Angular contact bearing TMP High Speed Germany Bearing replace

Product Details:

Place of Origin: CHINA
Brand Name: TLANMP
Certification: ISO9001:2008
Model Number: B7006C HQ1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1-1000
Packaging Details: Industrial Neutral Packing
Delivery Time: 10 days
Payment Terms: PAYPAL . T/T , WU , AliPAY
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
High Light:

B7006C Ceramic Ball Bearing

,

30x55x13mm bearing

,

B7006C bearing

B7006C HQ1 P4 Ceramic Ball Bearings (30x55x13mm)

Angular contact bearing TMP High Speed Germany Bearing replace

A . Ceramic Ball Bearings Parameters
Brand-TMP
Structure-Ceramic Ball/Angular Contact ball
Model number-B7006C HQ1
Inner ring(mm)-30
Outer ring(mm)-55
Width(mm)-13
Weight(Kg)-0.135
Materials-Chrome steel/GCR15
Precision grade-P4/P2
Lubrication type-Grease lubrication
Contact Angle-C=15°;AC=25°
Material(Ball)-SN24:Ceramic ball(Si3N4)
Number of Row-Single rows
Material(Cage)-TYN-PA;TR-PF
Combination-SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows
B . B7006C HQ1 Ceramic Ball Bearings Specification Sheet
Model NumberDimensionsα=15°α=25°Material
(Cage )
Weight (kg)
Approx
Limiting speedLimiting speed
dDBBasic load
rating
LubricationBasic load
rating
Lubrication
Cr CorGrease OilCr CorGrease Oil
B7006C HQ13055139.1 4.837000 55000--PF0.135

Categories:Ceramic Ball Bearings
Angular Contact Ball Bearings
Related Search:B7006C HQ1 P4,B7006C Ceramic Ball Bearings,B7006C Spindle bearing,B7006C Angular contact Bearing,30x55x13mm Bearing
C . B70 HQ1 series Ceramic Ball Bearings Details

Product

Features

Angular Contact Ball bearing with Ceramic balls (Si3N4), used in high precision Spindle and Motors

Series

Introduction

High Speed Ceramic Ball Type:ISO 10 Series - highest load, second lowest speed bearings-70 Series Angular Contact Bearings

Series

Model No.

B7000C HQ1,B7001C HQ1,B7002C HQ1,B7003C HQ1,B7004C HQ1,B7005C HQ1,B7006C HQ1,

B7007C HQ1,B7008C HQ1,B7009C HQ1,B7010C HQ1,B7011C HQ1,B7012C HQ1

ApplicationsHigh Speed Ceramic Ball Angular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrial equipment.
