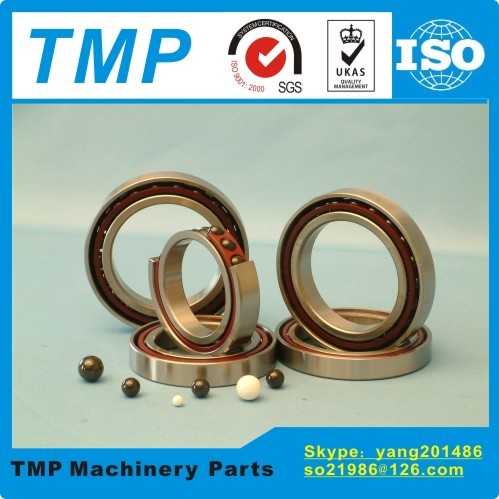

71916C HQ1 P4 Ceramic Ball Bearings (80x110x16mm) Angular contact bearing TMP High Speed Spindle bearings

71916C HQ1 P4 Ceramic Ball Bearings (80x110x16mm) Angular contact bearing TMP High Speed Spindle bearings

71916C HQ1 P4 Ceramic Ball Bearings (80x110x16mm)   Angular contact bearing TMP High Speed  Spindle bearings

Product Details:

Place of Origin: CHINA
Brand Name: TLANMP
Certification: ISO9001:2008
Model Number: 71916C HQ1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1-1000
Packaging Details: Industrial Neutral Packing
Delivery Time: 10 days
Payment Terms: PAYPAL . T/T , WU , AliPAY
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
High Light:

71916C Ceramic Ball Bearing

,

80x110x16mm bearing

,

71916C bearing

71916C HQ1 P4 Ceramic Ball Bearings (80x110x16mm)

Angular contact bearing TMP High Speed Spindle bearings

A . Ceramic Ball Bearings Parameters
Brand-TMP
Structure-Ceramic Ball/Angular Contact ball
Model number-71916C HQ1
Inner ring(mm)-80
Outer ring(mm)-110
Width(mm)-16
Weight(Kg)-0.37
Materials-Chrome steel/GCR15
Precision grade-P4/P2
Lubrication type-Grease lubrication
Contact Angle-C=15°;AC=25°
Material(Ball)-SN24:Ceramic ball(Si3N4)
Number of Row-Single rows
Material(Cage)-TYN-PA;TR-PF
Combination-SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows
B . 71916C HQ1 Ceramic Ball Bearings Specification Sheet
Model NumberDimensionsα=15°α=25°Material
(Cage )
Weight (kg)
Approx
Limiting speedLimiting speed
dDBBasic load
rating
LubricationBasic load
rating
Lubrication
Cr CorGrease OilCr CorGrease Oil
71916C HQ1801101622.4 20.815000 2500021.2 19.613000 21000PF0.37

Categories:Ceramic Ball Bearings
Angular Contact Ball Bearings
Related Search:71916C HQ1 P4,71916C Ceramic Ball Bearings,71916C Spindle bearing,71916C Angular contact Bearing,80x110x16mm Bearing
C . 719 HQ1 series Ceramic Ball Bearings Details

Product

Features

Angular Contact Ball bearing with Ceramic balls (Si3N4), used in high precision Spindle and Motors

Series

Introduction

High Speed Ceramic Ball Type:ISO 19 Series - second highest speed, with the second lowest load bearings-719 Series Angular Contact Bearings

Series

Model No.

71900C HQ1,71901C HQ1,71902C HQ1,71903C HQ1,71904C HQ1,71905C HQ1,71906C HQ1,

71907C HQ1,71908C HQ1,71909C HQ1,71910C HQ1,71911C HQ1,71912C HQ1,71913C HQ1,

71914C HQ1,71915C HQ1,71916C HQ1,71917C HQ1,71918C HQ1,71919C HQ1,71920C HQ1

ApplicationsHigh Speed Ceramic Ball Angular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrial equipment.
